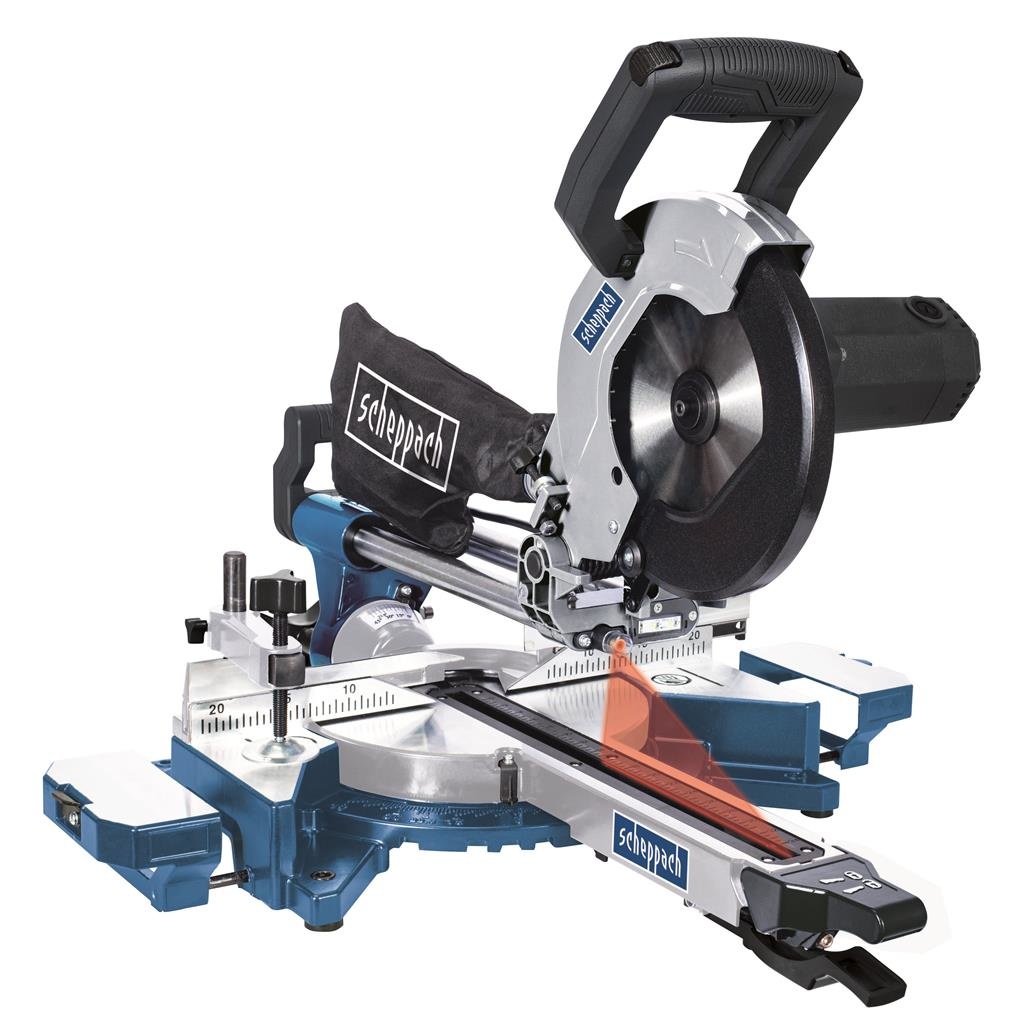

SCHEPPACH HOOD AND PULL SAW HM90MP

SCHEPPACH HOOD AND PULL SAW HM90MP

Thanks to the adjustable cutting speeds, the Scheppach miter saw is a truly universal device.
The 216 mm Ø multipurpose saw blade allows effortless cutting through many different materials, such as soft and hard wood, wood with nails, plastic, copper, aluminum and even steel.

2 cutting speeds for optimal adjustment
Multi-functional saw blade 216 mm Ø with 24 teeth
Cutting capacity of 340 x 65 mm
Screw clamping system for a stable hold of the workpiece with all miter, chop and crosscut cuts
High workpiece stop made of die-cast aluminum for optimal positioning and cutting
Two pull-out workpiece carriers made of die-cast aluminum with integrated and fold-out workpiece stop
Durable saw blade protection made of die-cast aluminum
Includes laser for accurate marking of the cutting edge
Precise cuts due to stable double column guide
Includes carrying handle at the rear for ease of transport.

Article number 5901219901
EAN code 4046664092346
Brand SCHEPPACH
Net weight (kg) 0
Cutting depth cutting company 45 ° / 45 ° 38 mm
Cutting depth cutting company 45 ° / 90 ° 38 mm
Cutting depth cutting company 90 ° / 45 ° 38 mm
Cutting depth cutting company 90 ° / 90 ° 65 mm
Cutting height table operation 45 ° 65 mm
Cutting height table operation 90 ° 65 mm
Cutting width for cutting company 45 ° / 45 ° 38 mm
Cutting width for cutting company 45 ° / 90 ° 340 mm
Cutting width for cutting company 90 ° / 45 ° 340 mm
Cutting width for cutting company 90 ° / 90 ° 340 mm
Frequency 50 - 50 Hz
Height 545 mm
Tilt adjustment left 45 °
Tilt adjustment right 45 °
Length 768 mm
Miter setting left 90 °
Right miter adjustment 90 °
Nom. power consumption 240 W.
Saw blade diameter 255 mm
Suitable for metal No.
Suitable for plastic Yes
Suitable for stone No.
Suitable for wood Yes
Voltage 240 V.
Weight 14.5 kg
Width 593 mm
Stand included No.
With laser Yes
