Scheppach SCHEPPACH TABLE DRILLING MACHINE DP55
- Article number:5906822901

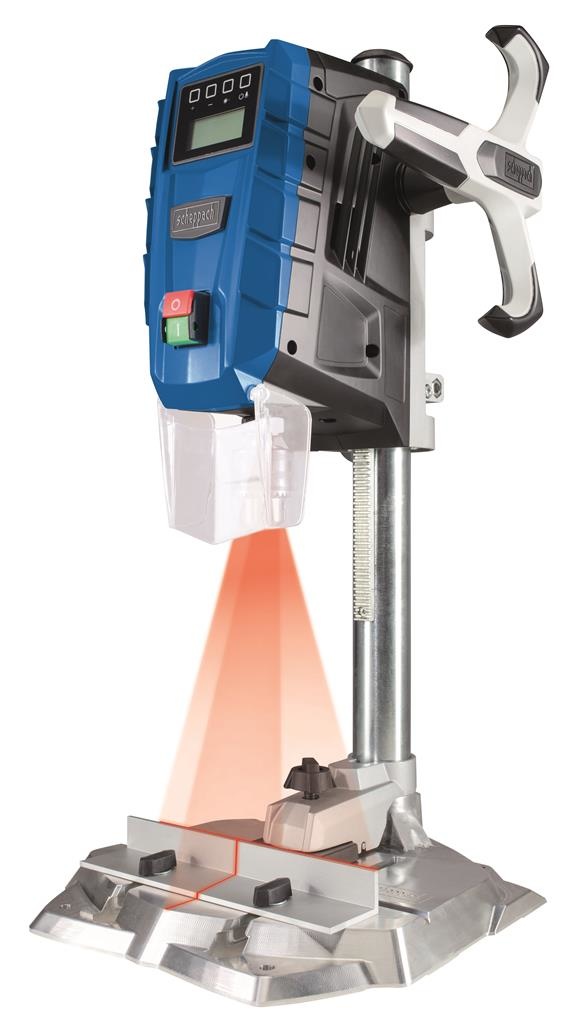

SCHEPPACH TABLE DRILLING MACHINE DP55
For all accurate DIYers with a small workshop, the Scheppach DP55 drill is the right choice, with a digital display for accurate speed setting. The drill is quickly clamped in a few simple steps and the workpiece can also be fixed in a few seconds with the quick release. An integrated laser ensures precise drilling in steel and wood.
Precise setting of the speed from 500 - 2600 rpm via digital display
Fast clamping of the drill in the precision chuck
Integrated laser for precise drilling
Quick clamp for fastening the workpieces
Powerful 710 W motor
260 mm distance between the clamp and the table
Clamping range from 1.5 to 13 mm for maximum drill holes of 13 mm in steel and 40 mm in wood.
Stable mounting plate 320 x 305 mm
Article number 5906822901
EAN code 4046664094913
Net weight (kg) 0
Integrated cooling Yes
Max. load speed 4th gear 2600 rpm
Max. load speed 3rd gear 2600 rpm
Digital speed display Yes
Digital pinole stroke display Yes
Height 675 mm
Length 380 mm
Max. drilling diameter 13 mm
Max. load speed 1st gear 2600 rpm
Max. load speed 2nd gear 2600 rpm
Nom. power consumption 710 W.
Speed 500 - 2600 rpm
Infinitely adjustable No.
Stroke 70 mm
Suitable for metal Yes
Suitable for wood Yes
Total height 675 mm
Type of Table
System type Quick release
Voltage 240 V.
Width 250 mm
Stand included No.
With digital readout Yes
