SNAP SAW MACHINE SSA500EHPRO

LUMAG SPLIT SAW MACHINE SSA500EHPRO

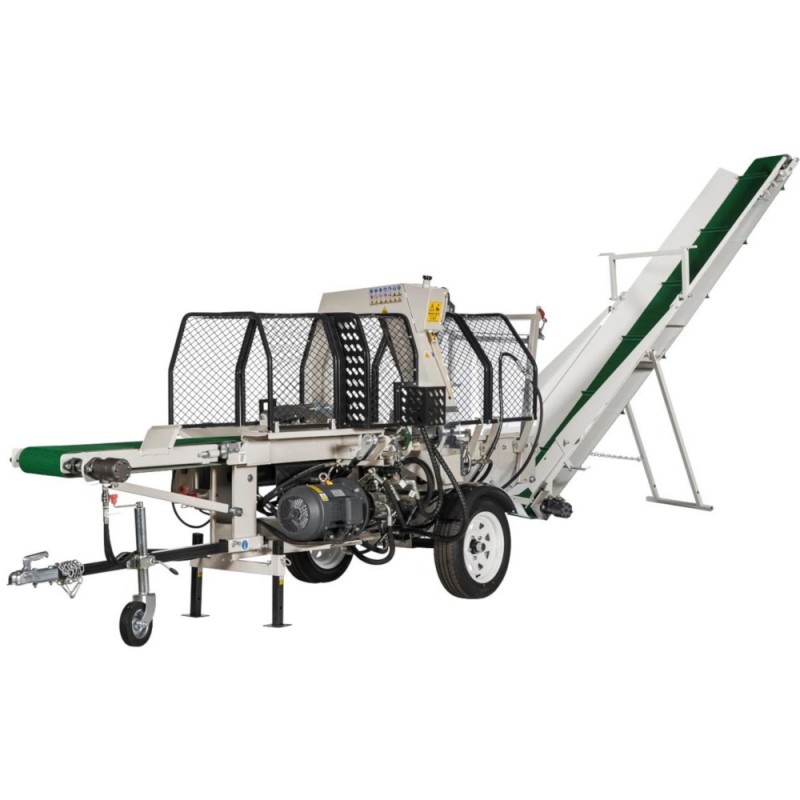

This unique professional 400 Volt saw and splitter SSA500EHPRO from Lumag combines three machines in one.
The machine cuts your wood to the desired length and then splits the sawn piece of wood into 2 or 4 parts (also available as an option with a 6-part splitting cross).
The machine has a hydraulic supply conveyor belt (wood supply up to the saw) and discharge conveyor belt (after splitting).
The sawing and clamping of the wood is also hydraulic and automatic.

The saw-splitter is equipped with a powerful 9500 Watt, 18.4A electric motor (mains voltage 400V/50Hz, fuse 20A, min. cable thickness 2.5mm²).
The advantage of an electric motor is of course no engine noises or exhaust gases, so working in an environmentally friendly way.
You can split wood very safely with this machine, but of course your splitting yield is much higher than if you have to perform both operations (splitting and sawing) separately.

You can supply logs up to 50cm in diameter with the supply belt which continues up to the saw.

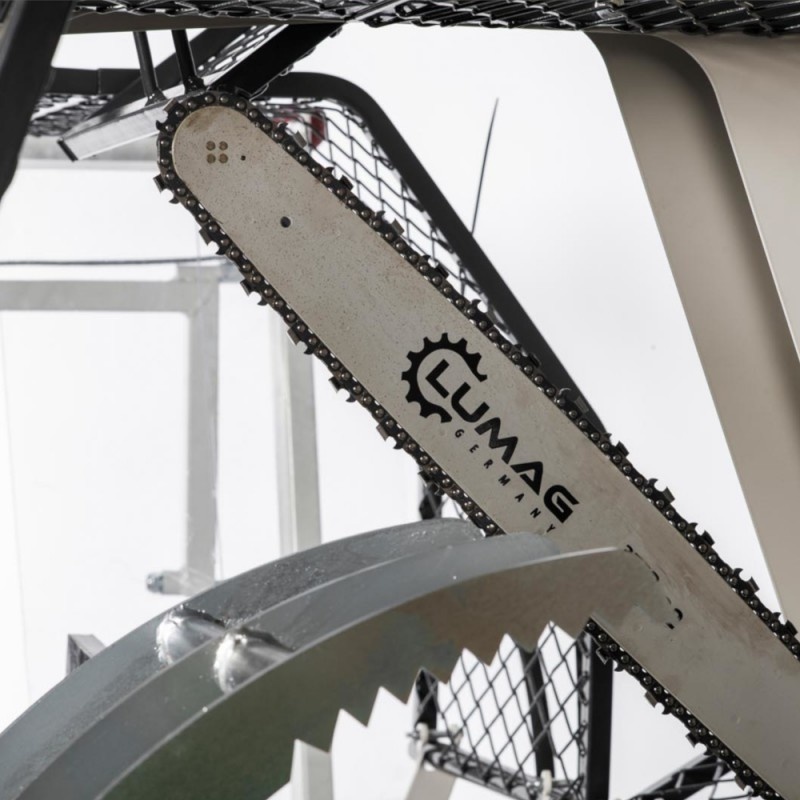

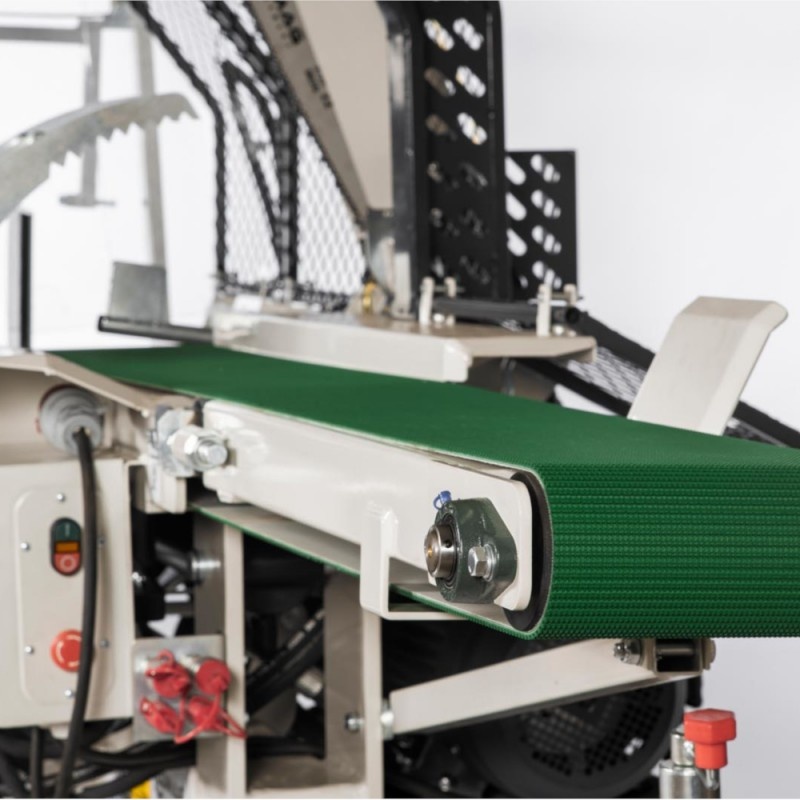

With a hydraulically driven (and automatically sawing chainsaw) you saw the log to the desired length, the wood then falls in front of the splitting device, which will split the wood with a hydraulic splitting force of 20 tons. Then the wood comes on a 3.2 meter long conveyor belt that transports it to a location of your choice (you make a mountain of split wood or drop the wood directly into transport or trailer).
The maximum discharge height is 2 meters.
The conveyor belt can be easily adjusted to height by means of the existing winch.
Splitting and sawing can be done simultaneously by using two hydraulic pumps.

The machine can split up to 5-8 cubic meters per hour on average.
Of course, factors such as speed of supply, log thickness and type of wood are important.
The machine stands on a transport undercarriage and is equipped with a towbar coupling (only to be used on your own property).

The machine can use various optional accessories such as a hydraulic log lifting installation, a hydraulic log supply table and a 6-piece splitting cross.

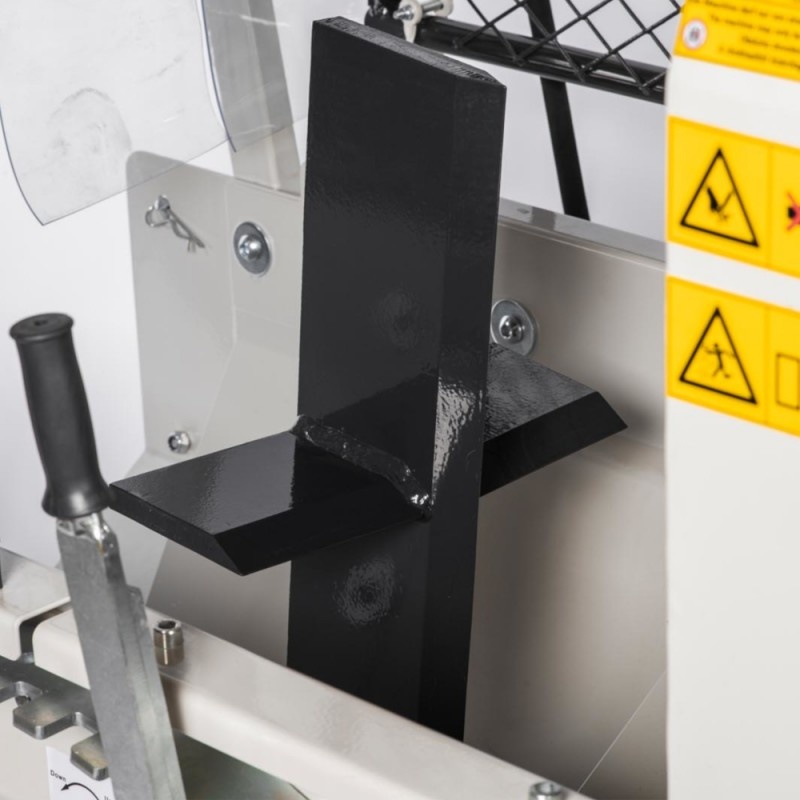

A combination of 2 and 4 piece splitting cross is standard with every machine.

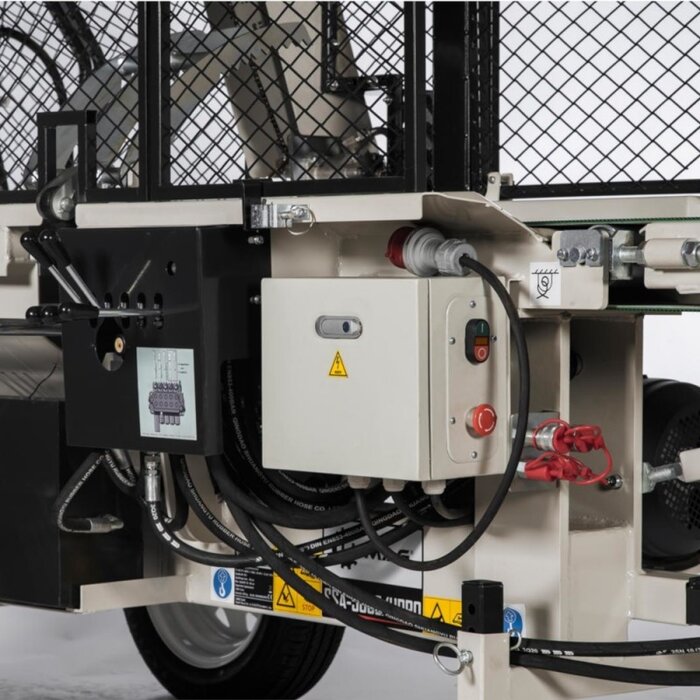

The 3 way control valve + Parker Pump & hydraulic motor that you see in the picture is delivered directly with the machine. This can also be used in combination with, for example, a lifting table or supply belt.

This machine is only supplied by an authorized Matom dealer.
The machine is delivered to you fully assembled.

Type Engine
Electric motor 400 Volt
Chain
C3621 000 0077/0.375/1.5mm (Stihl)
Engine power
9500 Watts, 18.4A
splitting power
20 Ton
EAN code
4047424007396
Machine dimensions (L x W x H)
Conveyor belt: 3200 x 200 x2800mm
sword length
55cm
max. gap length
500mm
Split speed backward
5 cm/sec.
Split speed forward
6 cm/sec.
Saw/split cross section
max. 500mm
Conveyor belt speed
Hydraulic motor, max. 284 rpm. per min./110 bar/ 285Nm, 0.8 m. per sec.
max. loading height
2 meters
Motorcycle chainsaw
Hydraulic, max. 4,500 rpm.
Pack sizes (L/W/H)
Machine: 2000 x 1000 x 1200 mm, Transpot belt 1850 x 450 x 570mm
art. no.
SSA500EHPRO
Weight Net
780 Kg (670Kg + conveyor belt 110Kg )
