Telehandler Telehandler GG613S

telescopic loader

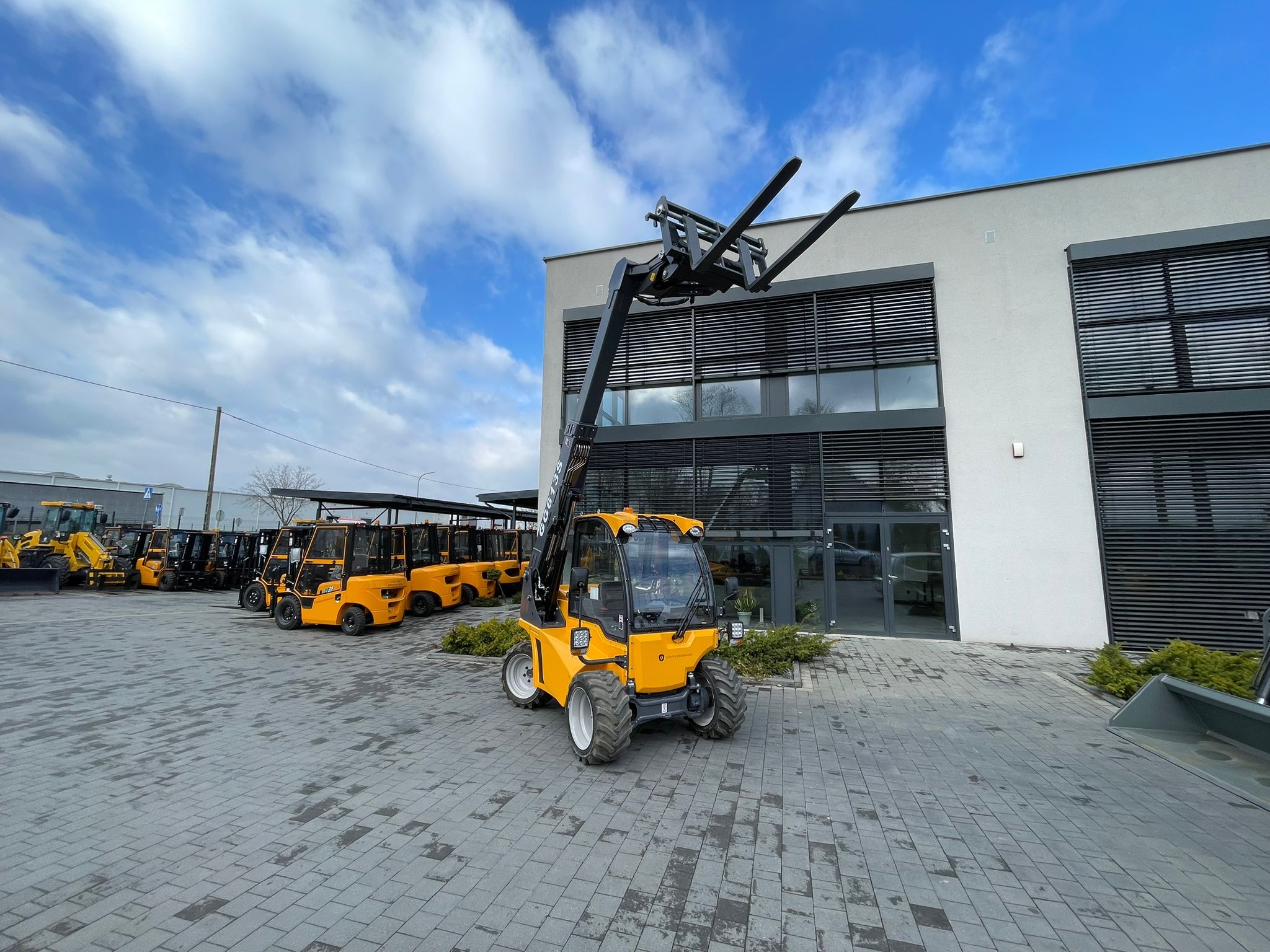

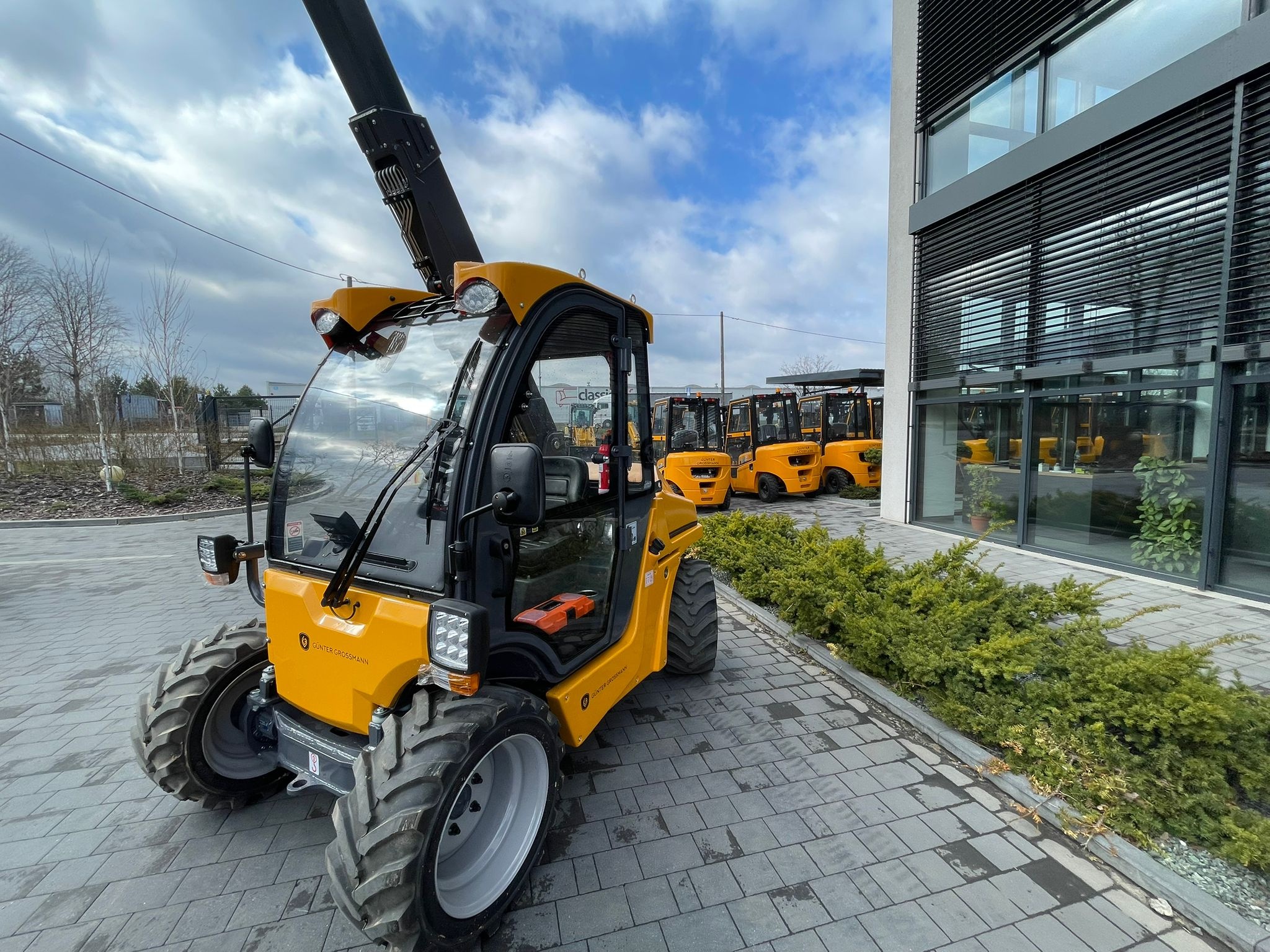

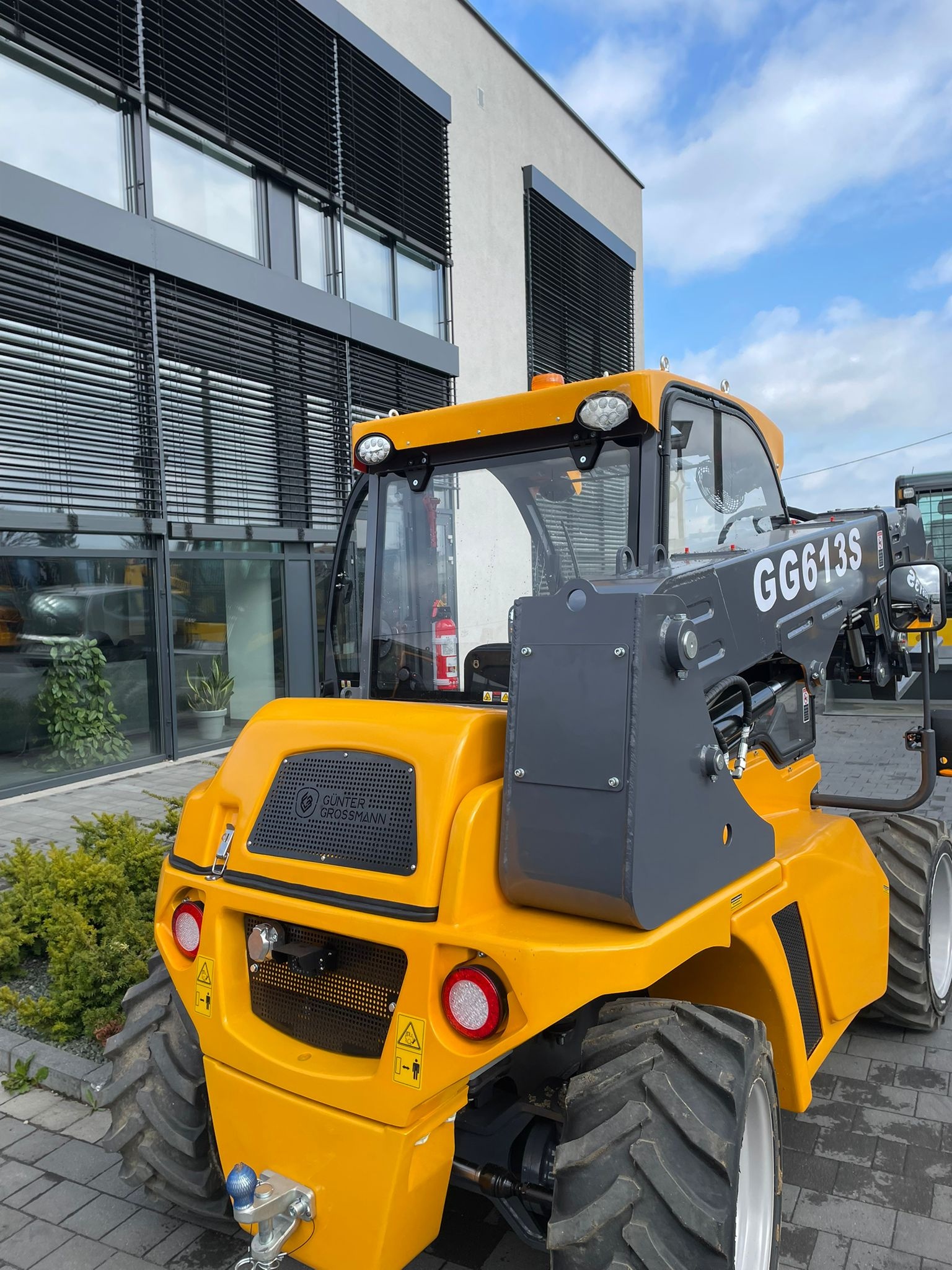

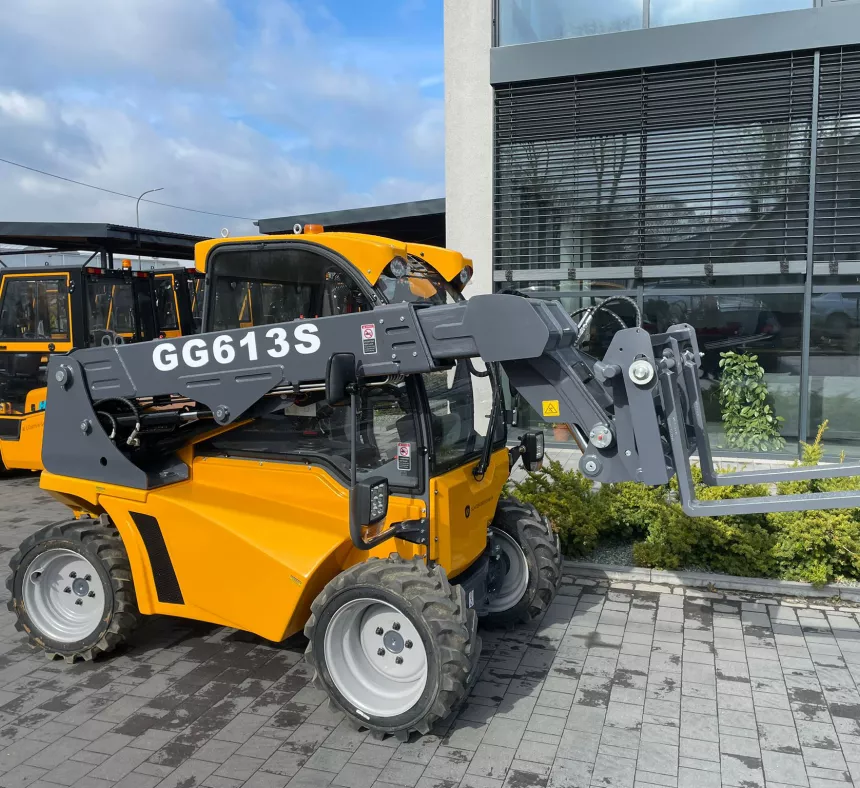

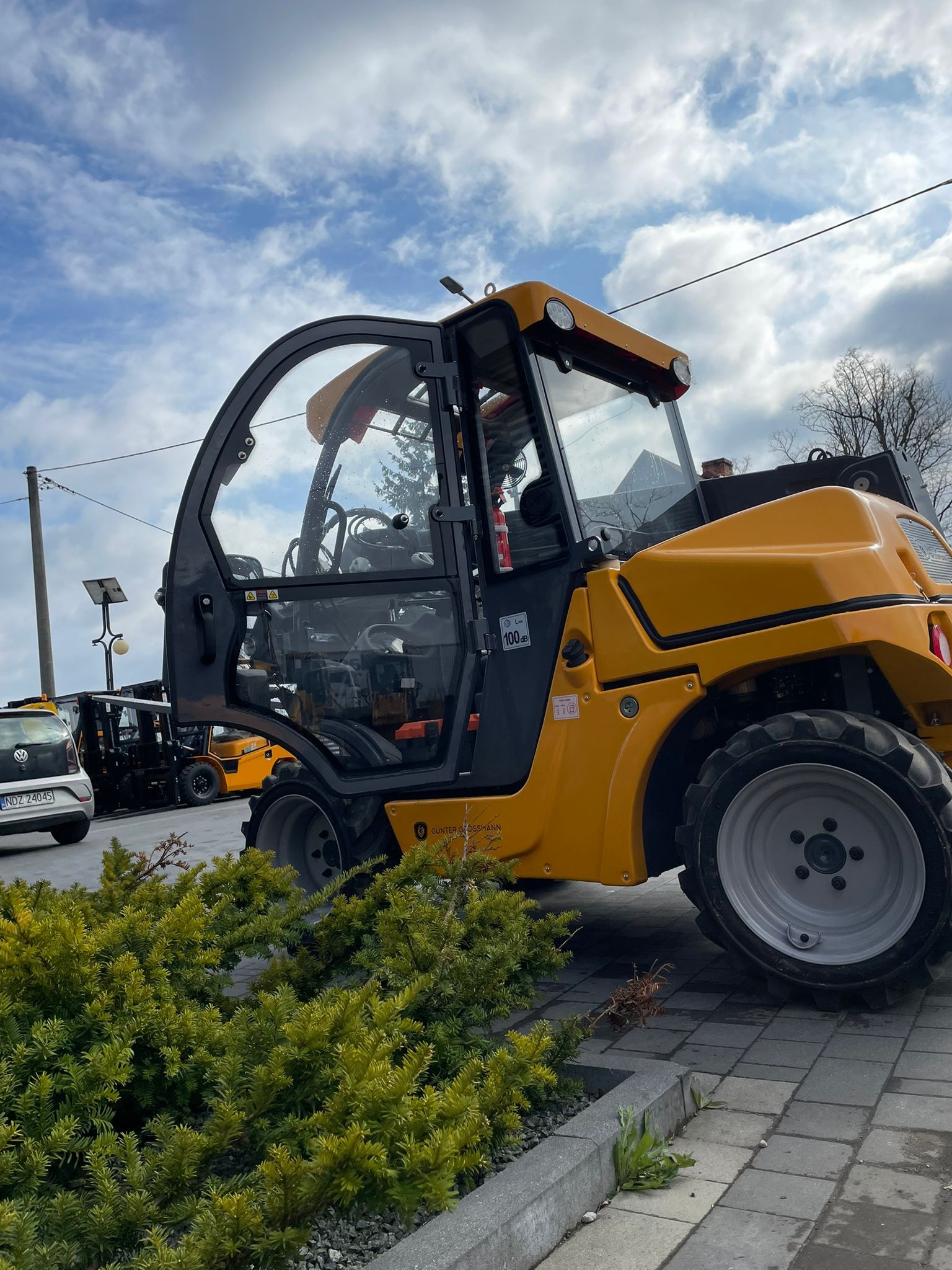

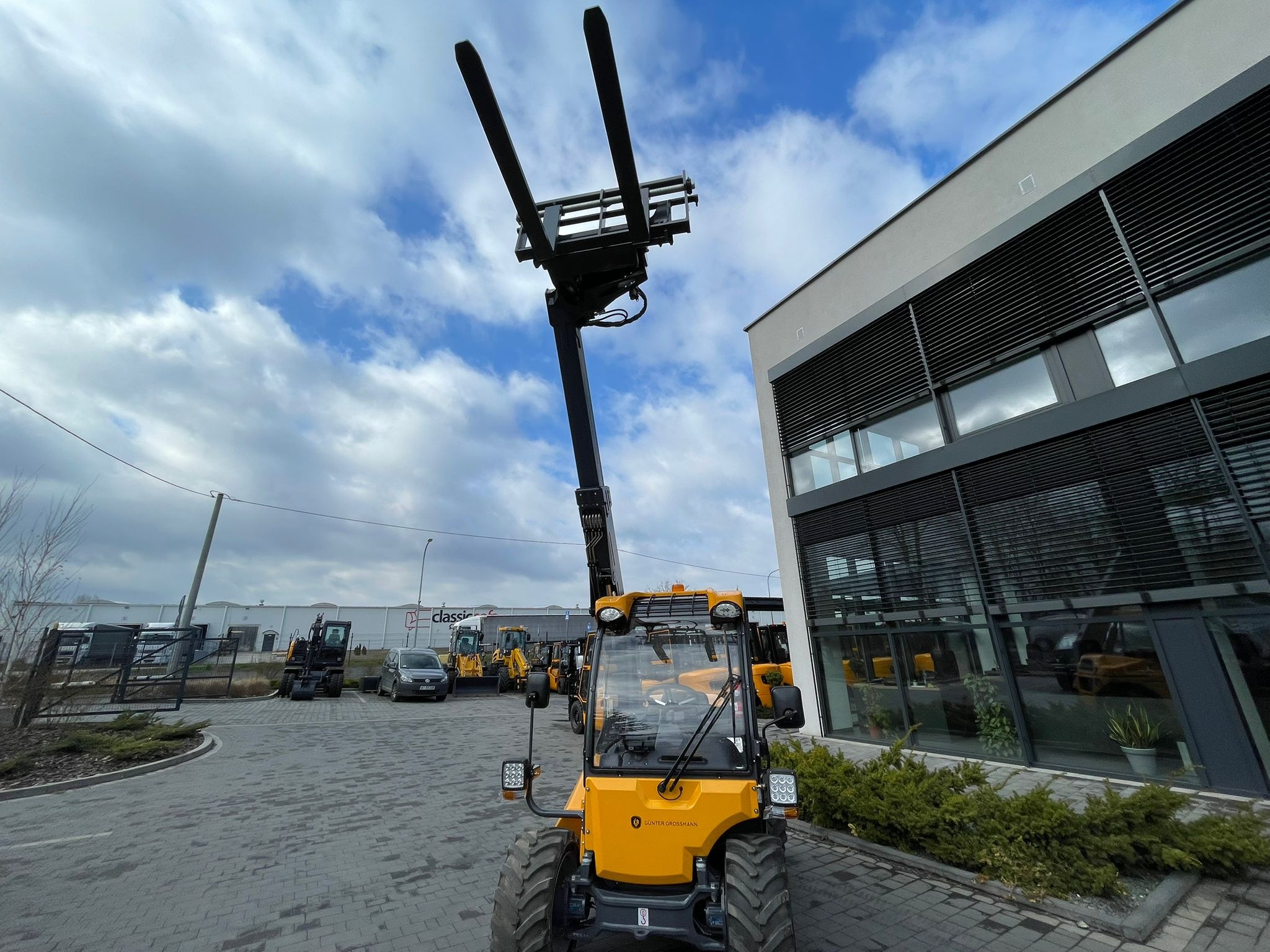

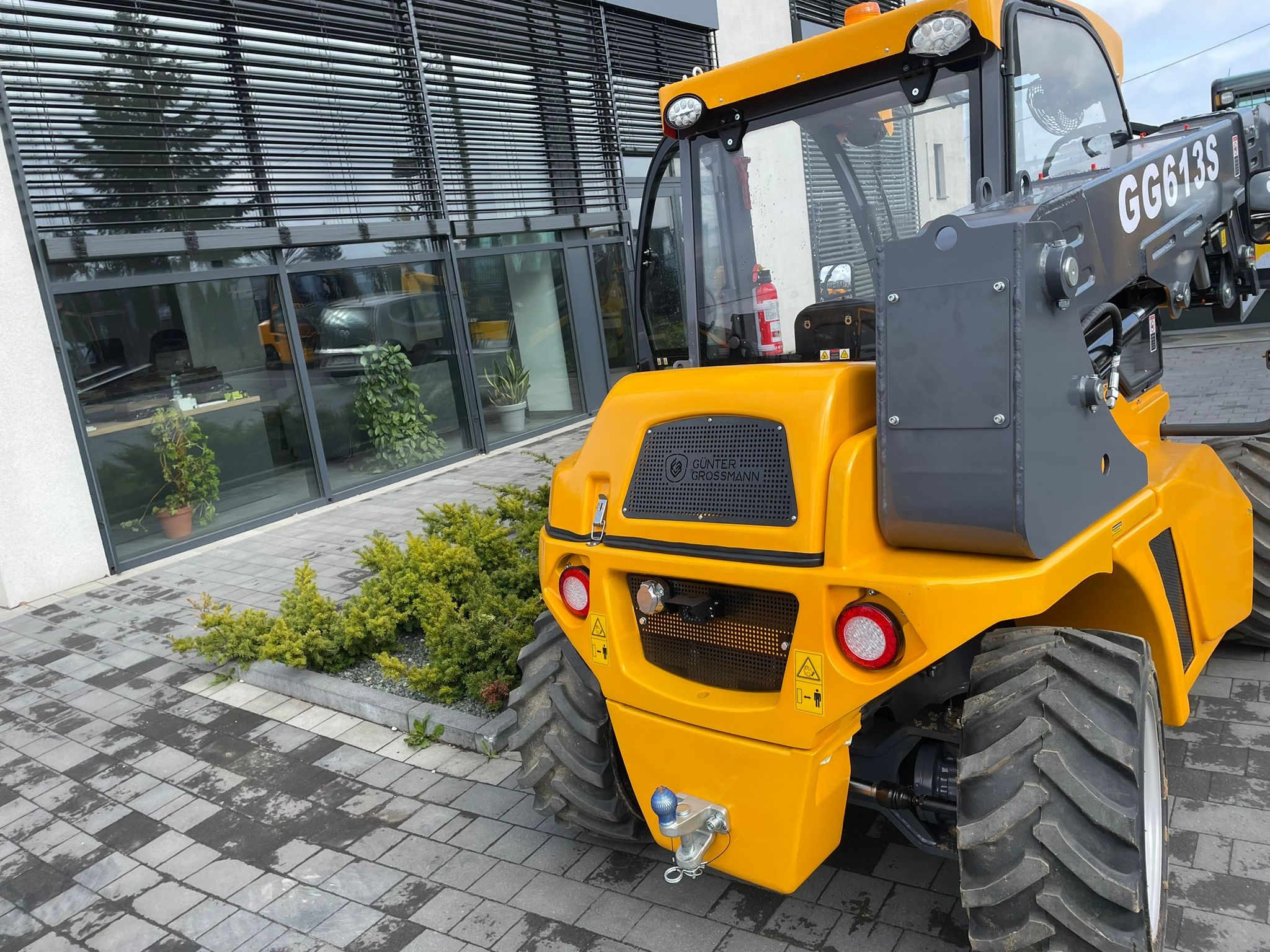

Telehandler GG613S

The GG613S is a compact and powerful telescopic handler designed for intensive use in construction, agriculture, and industry. It combines high performance, precision, and maneuverability, and is suitable for use in confined spaces as well as on difficult terrain.

Perkins Euro 5 engine

The unit is powered by a Perkins Euro 5 engine with 18.4 kW (2200 rpm). It is characterized by low fuel consumption (≤230 g/kWh), smooth running, and compliance with emissions standards.

4x4 drive and precise hydraulics

The hydraulic all-wheel drive and rear axle support ensure excellent grip and maneuverability. The pressure in the drive system is 35 MPa, the working pressure 24 MPa – enabling efficient and precise operation of the attachment.

Comfort and safety

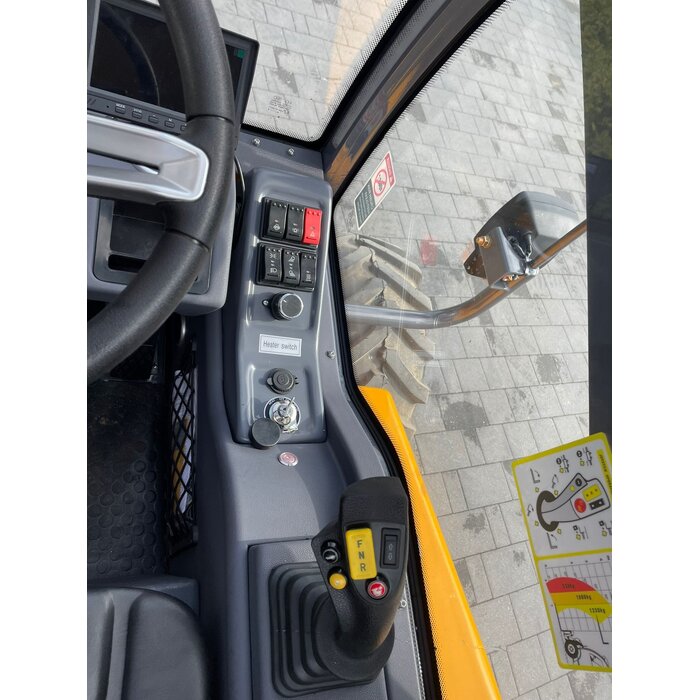

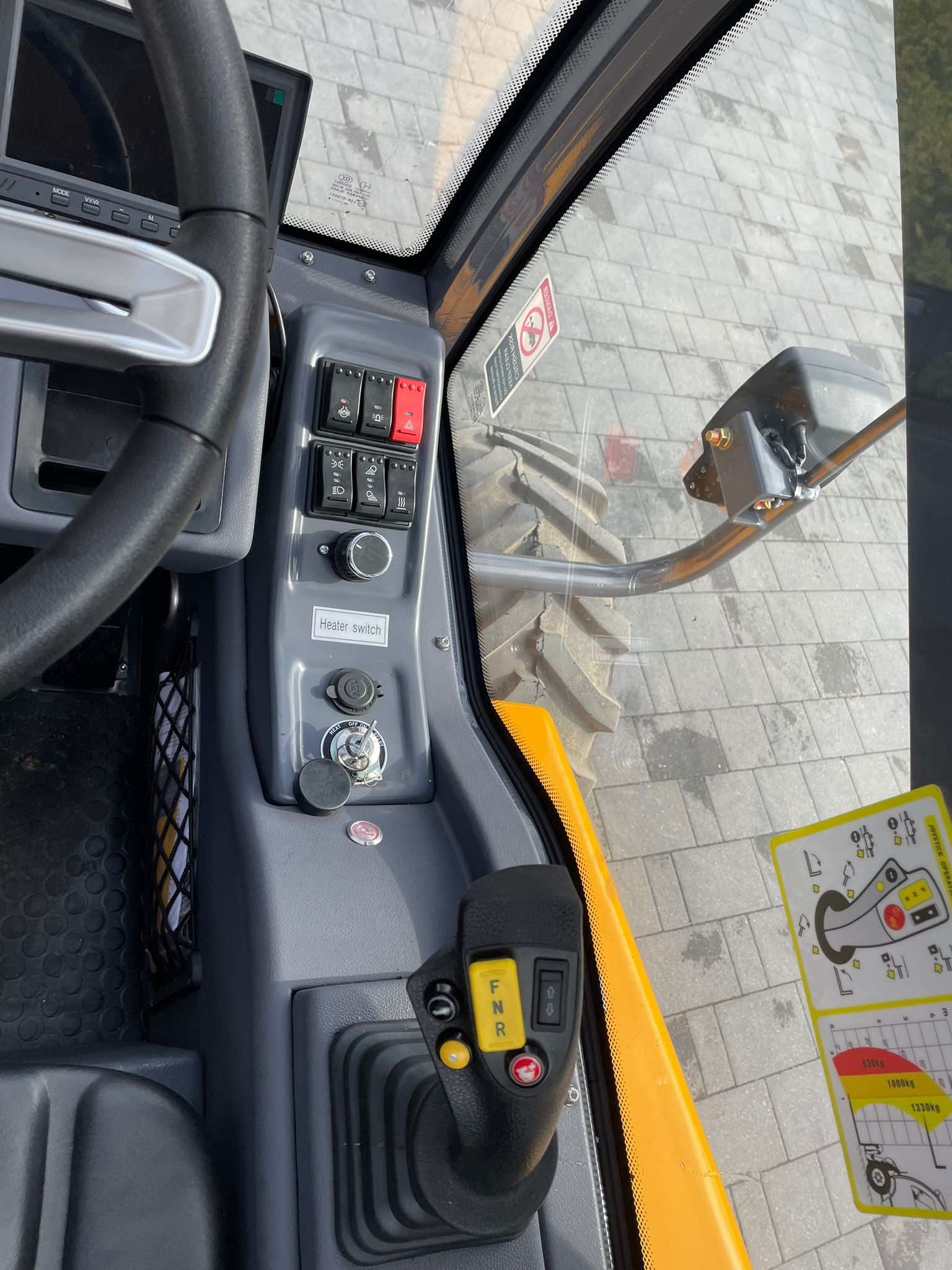

The machine is equipped with an electric parking brake, a hydraulic safety brake, and a modern joystick control system. A quick-coupling system and a self-leveling function facilitate attachment changes.

Performance and operating parameters

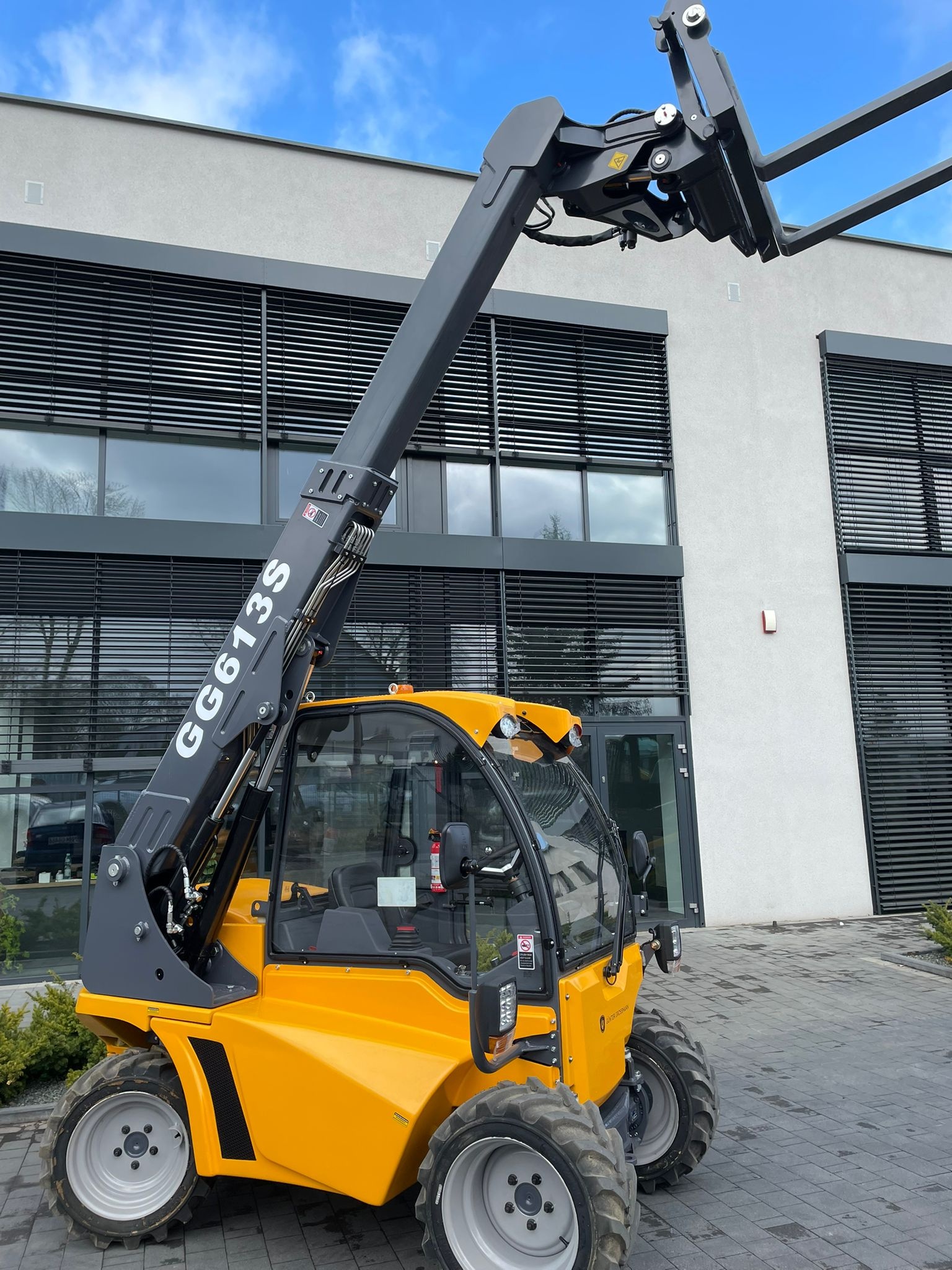

The telescopic handler has a bucket with a capacity of 0.3 m³ and a width of 1588 mm. Its lifting capacity is up to 1400 kg and its lifting height up to 4010 mm, allowing for convenient material handling without additional equipment.

Compact dimensions and maneuverability

The overall length including the shovel is 3350 mm, the width 1588 mm, and the height 1955 mm. A turning radius of 3560 mm allows for use in confined spaces. Tires measuring 26*12-16.5 (width 275 mm, diameter 658 mm) ensure stability on uneven terrain.
