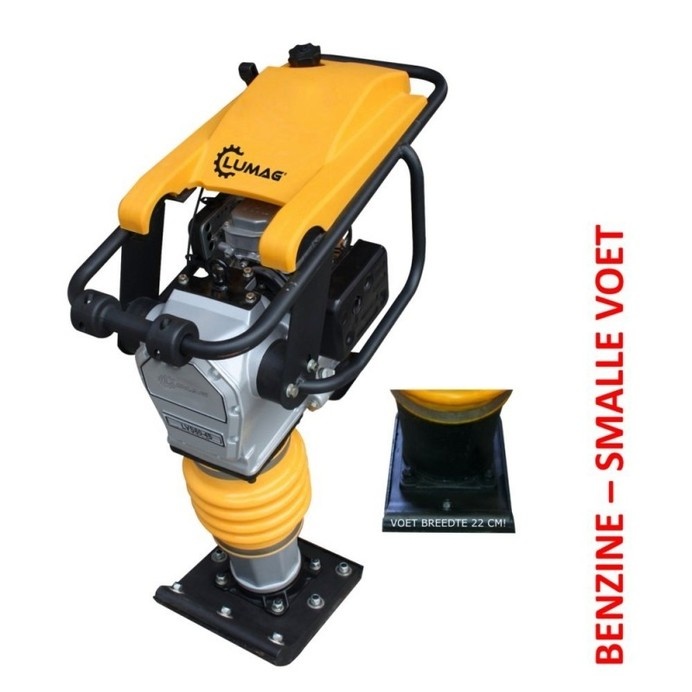

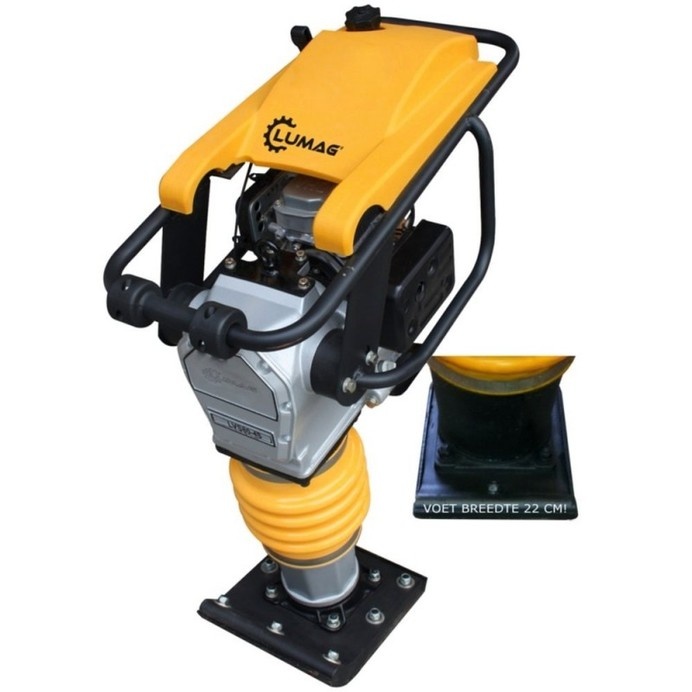

Lumag Vibratory rammer LVS80-GXSM (HONDA)
- Article number:LVS80-GXSM
This Lumag LVS80-GXSM vibratory rammer is very suitable for compacting sand, earth, soil balls etc. in trenches or narrow passages. The narrow handle also makes it suitable for hard-to-reach areas.
The powerful specially designed Honda GX120 engine in combination with the solid construction of this machine makes this machine also suitable for intensive use. The stamping foot of the LVS80-GXSM is narrower than that of the LVS80-GX, namely 345 x 220 mm. The superstructure of the LVS stampers is narrower than that of the USA stampers so these machines are more suitable for working in trenches. The machine can also be used for other vibrating activities.
The machine is supplied including a transport wheel set.
|Engine type||Air-cooled 1-cyl. 4-stroke OHV gasoline engine|
|Engine capacity||118 cm³|
|Max power||4 hp|
|Engine manufacturer||Honda GX120|
|Impact force||1150 kg / 11.5 kN|
|Base plate dimensions (L x W)||345 x 220 mm|
|Number of strokes per min.||640-680|
|Tank capacity||2.0 liters|
|Fuel type||Euro unleaded gasoline|
|Starting system||Pull starter|
|Noise level||108 dB (A)|
|Transport wheel set||Yes|
