fully electric pallet truck
HUB15FLEX_48V *

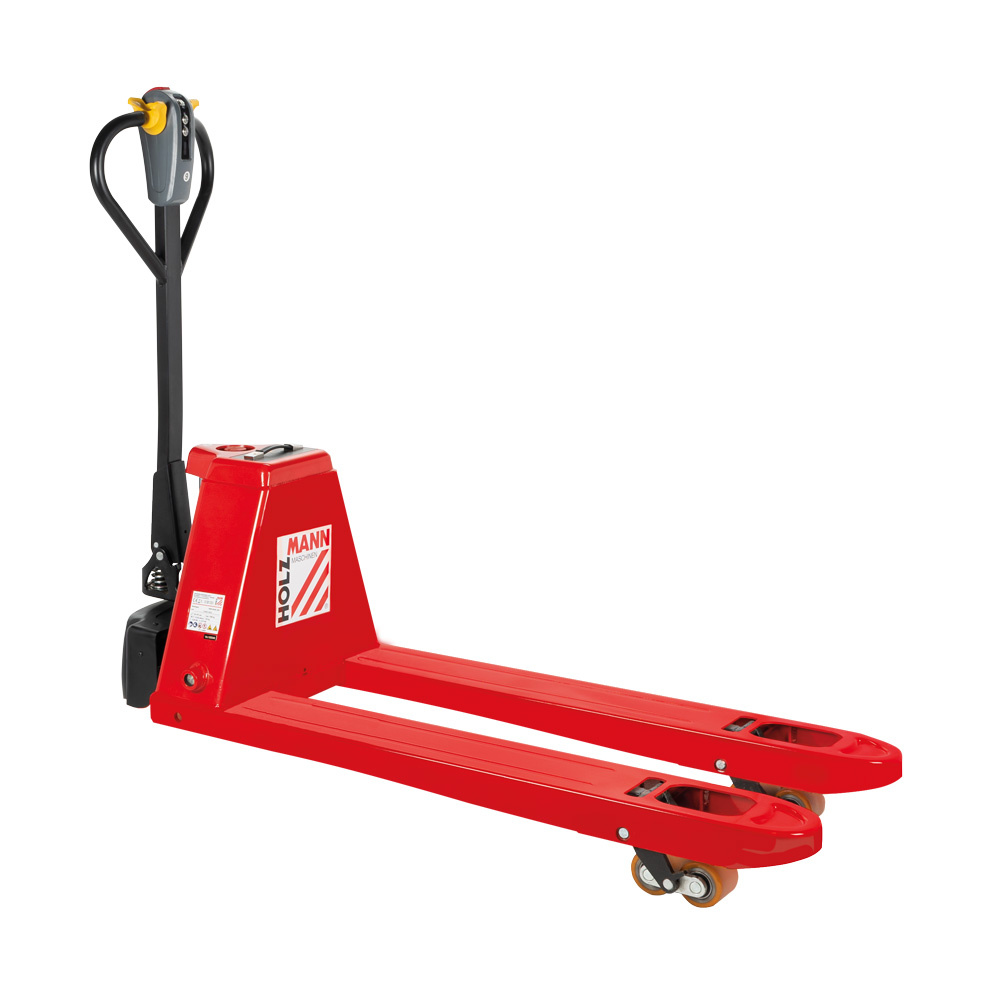

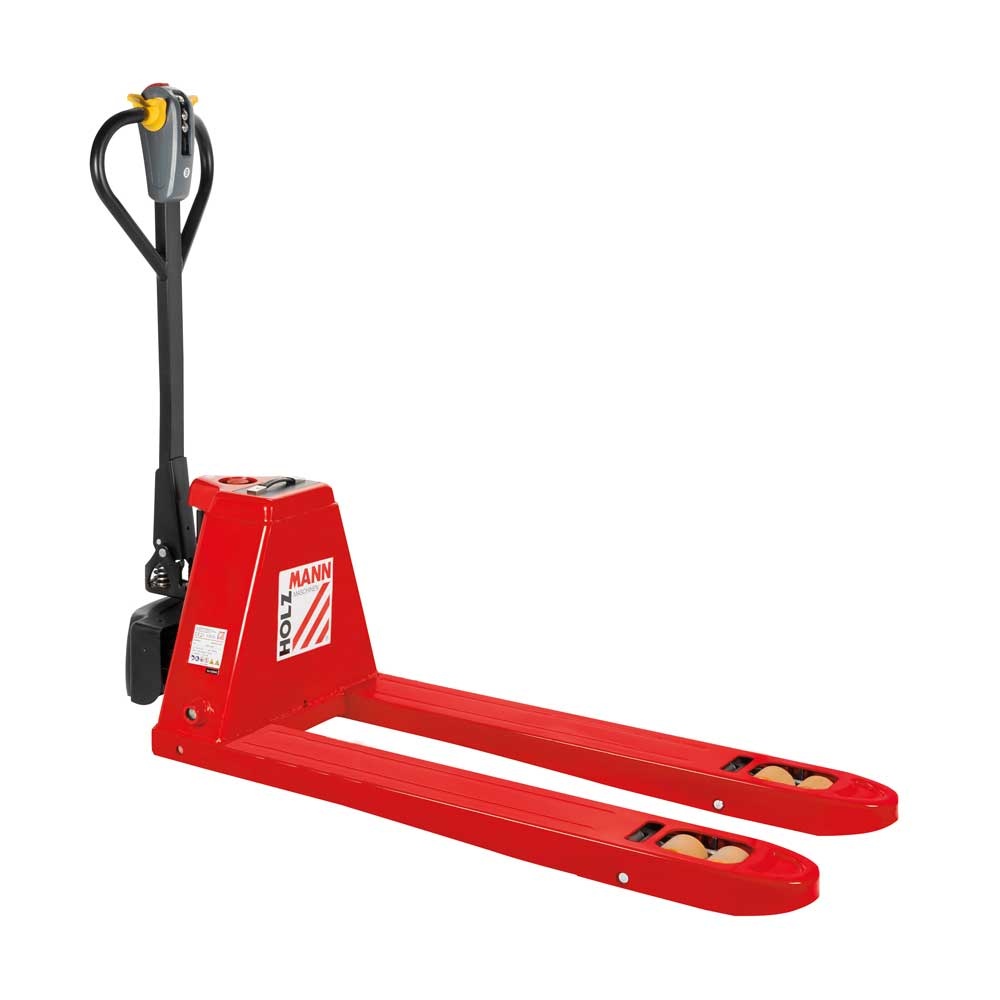

fully electric pallet truck
Fully electric pallet truck (driving 750W & lifting 500W)
Driving speed up to 4 km/h
with horn

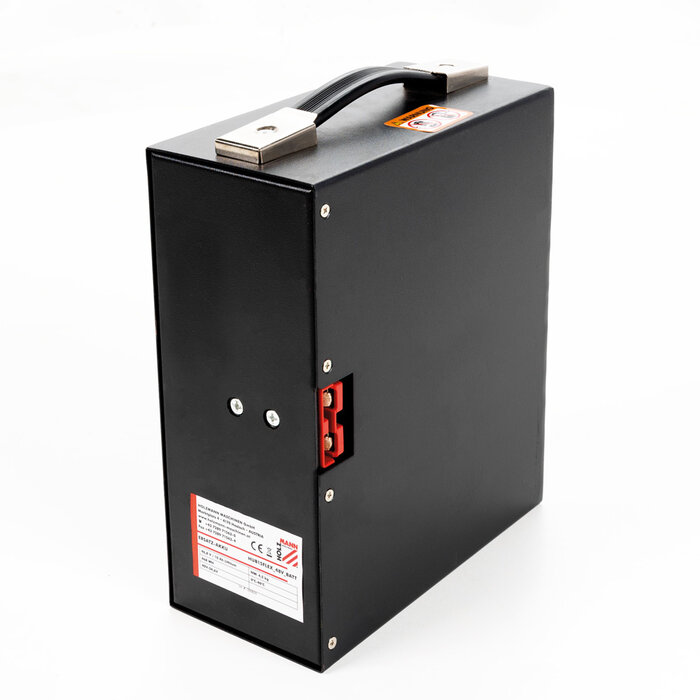

Li-ion battery with 10Ah/48V
Battery charge level indicator in %
Fork width 160 mm
Turning circle of 1.35m
new with slow/fast driving speed selection function
Scope of delivery: incl. battery, charger
Engine data
Engine power S1 in W 750 / 500
Battery voltage 48
Battery capacity 480 Wh
Battery life ~3 hours
Charging time ~5 hours
General dimensions
Lifting capacity in kg 1500
max. fork height in mm 195
min. fork height in mm 85
Fork dimensions in mm 1150 x 550
Stroke in mm 110
Weight
Gross weight in kg 126
Net weight in kg 125
Shipping Dimensions
Packaging width in mm 800
Packaging length in mm 1,400
Packaging height in mm 670
General information
EAN code 9120058378478
