Description Read moreRead less

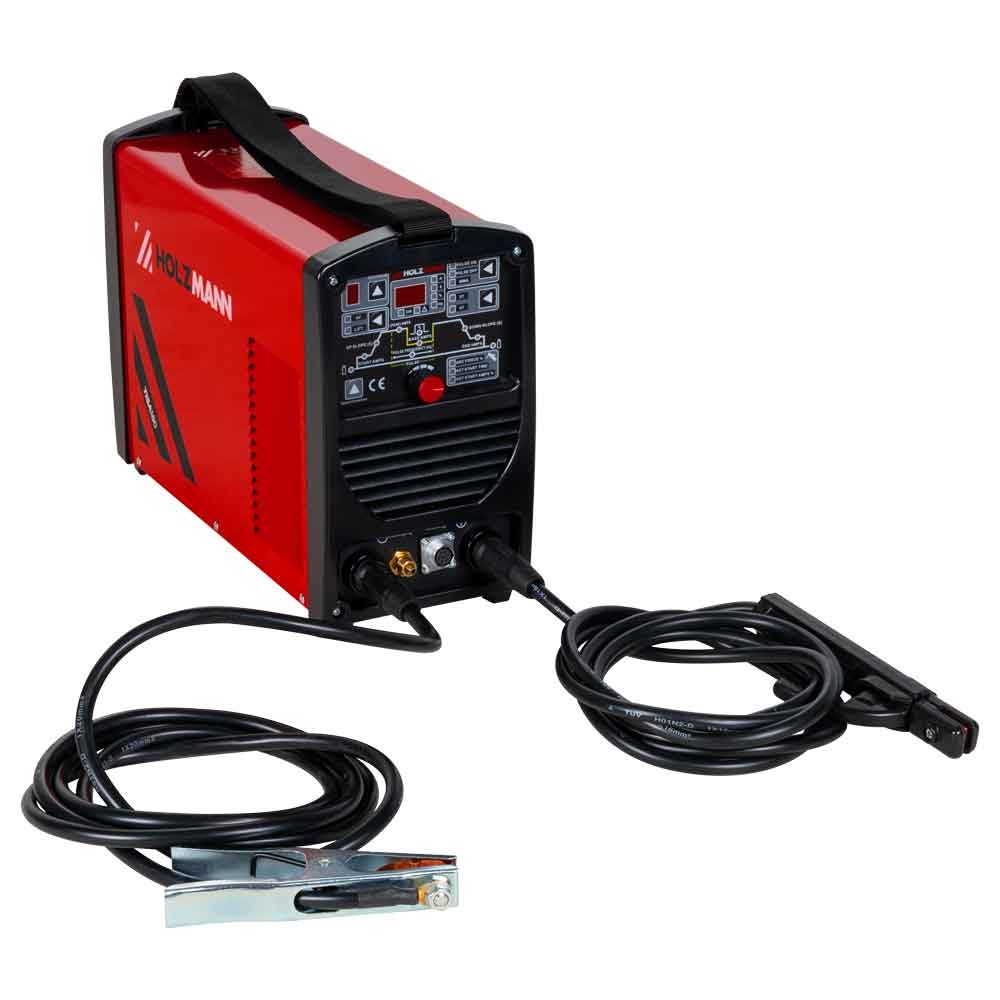

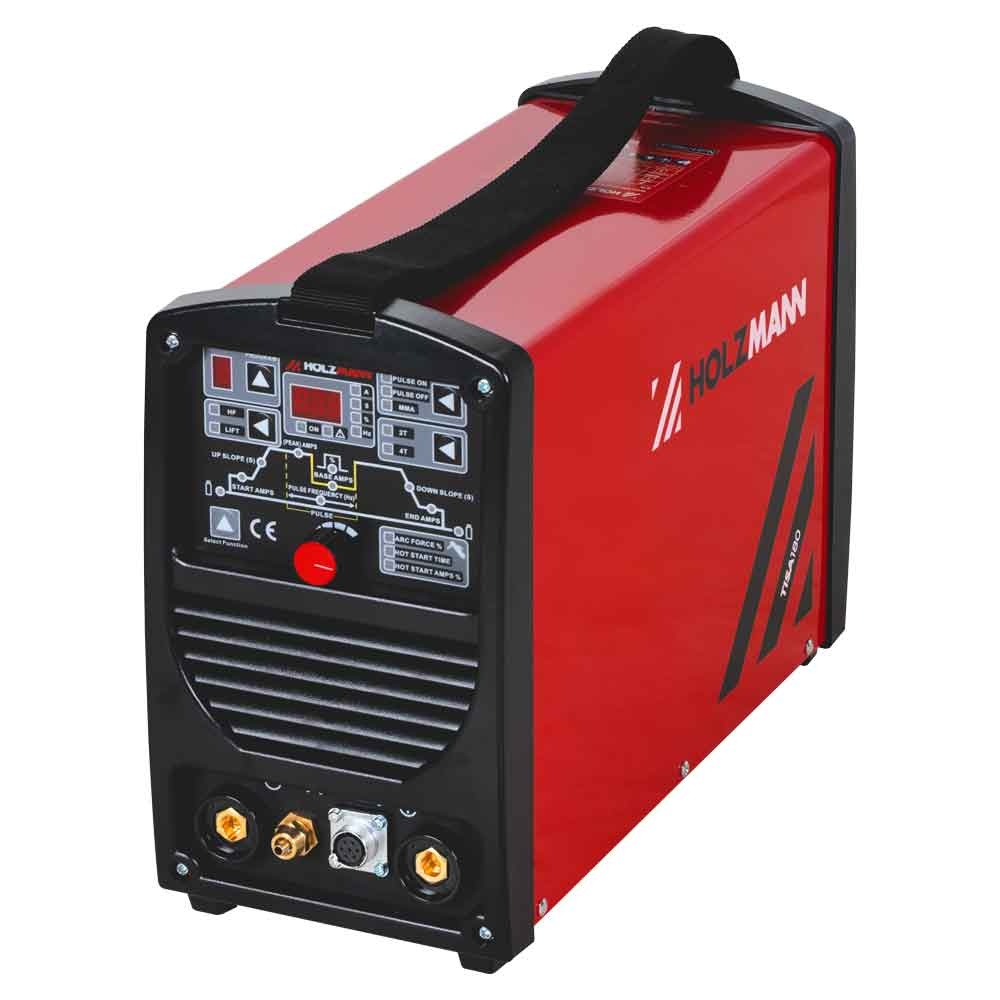

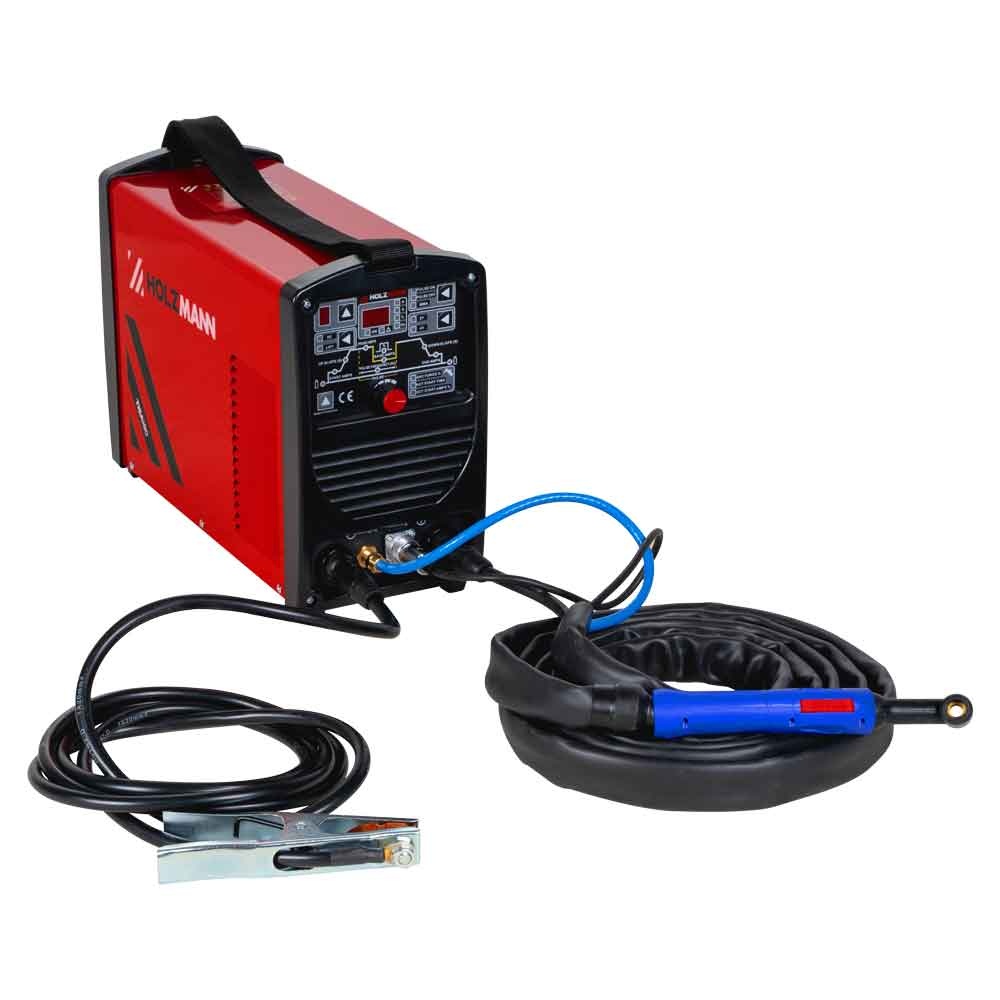

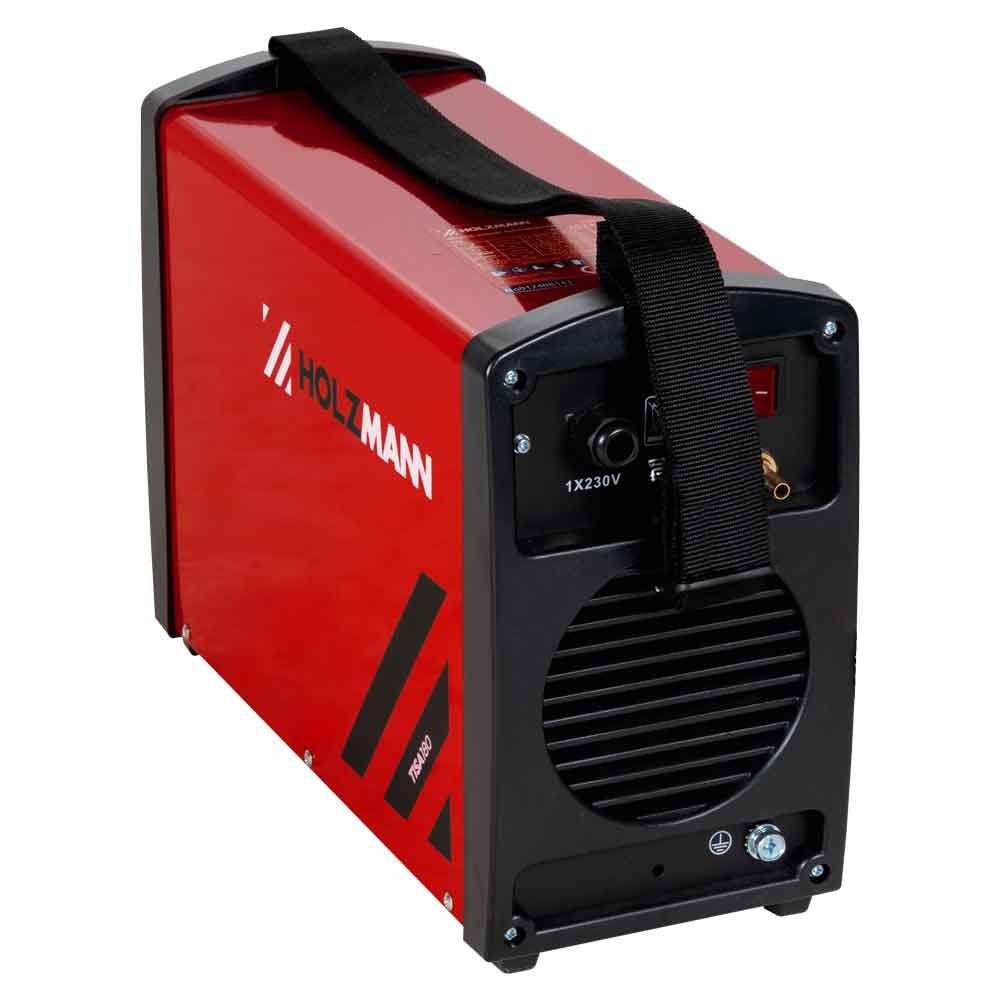

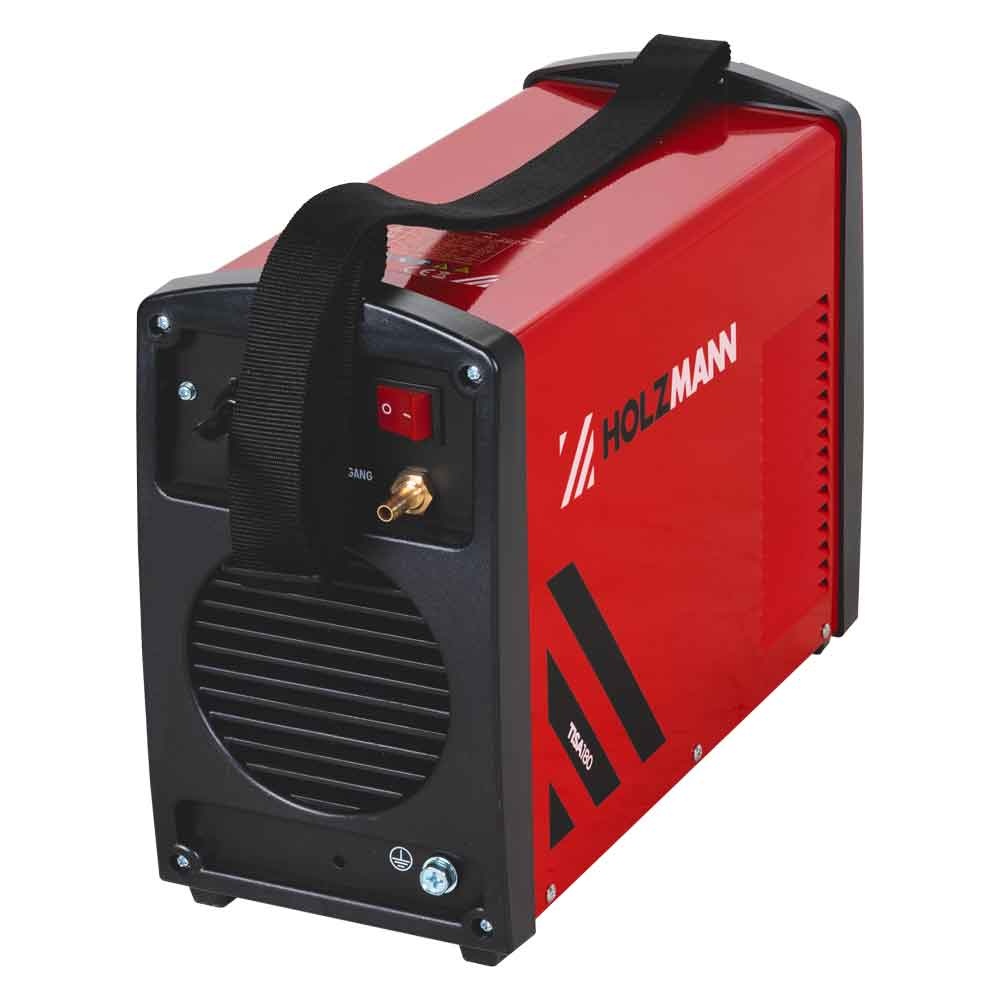

TISA180 WIG/TIG inverter welding system
The HOLZMANN TIG/MMA welding system TISA180 with selector switch for arc ignition (LIFT/HF), 2T/4T welding torch mode, program storage function... can be used for DC-MMA / DC-TIG and DC pulse TIG.
Highlights
- Gas pre-flow time: 0-10 s
- Gas post-flow time: 0 - 25 s
- MMA (electrode) welding
- Welding current range 5 - 160 A
- TIG welding
- Welding current range: 3 - 180 A
- Current reduction time: 0 - 25 s
- Current rise time: 0- 25 s
- Pulse frequency DC: 0.5 - 500 Hz
- TIG arc ignition: HF/Lift

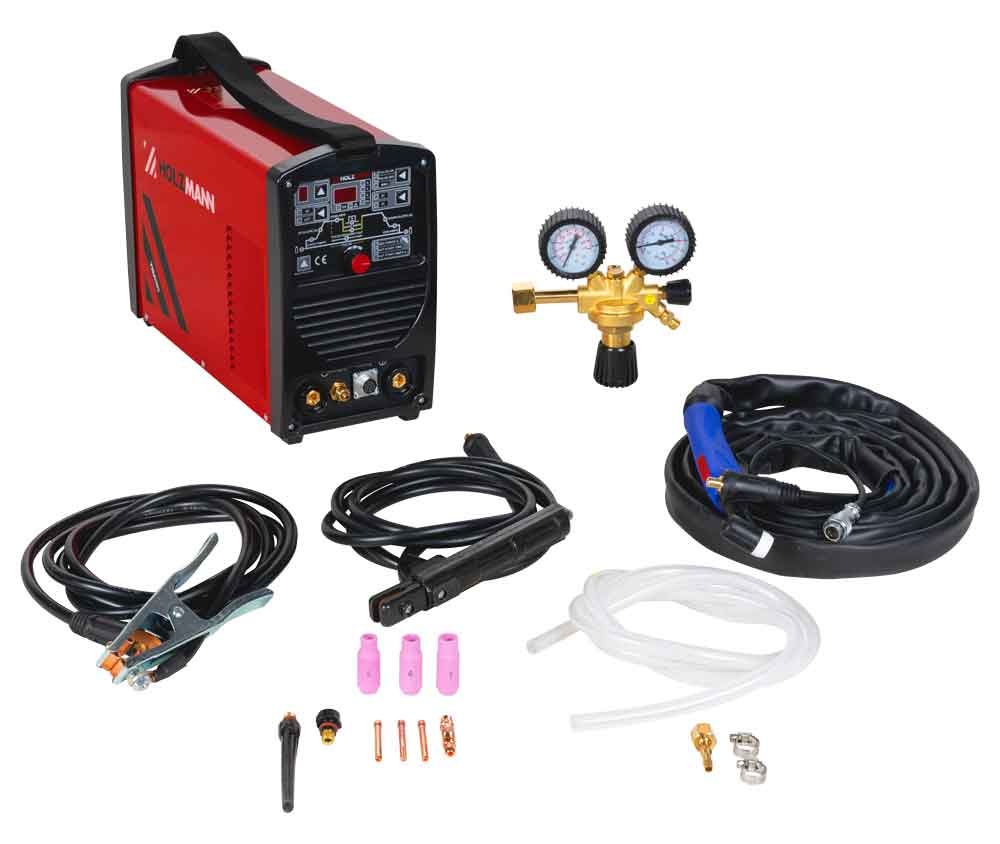

Scope of delivery : TIG welding torch, electrode holder, torch cap (short/long), gas nozzles, collet housing and collet, gas hose, earth cable, pressure reducer
Technical details
General dimensions
Installation dimensions in mm 425 x 195 x 310
Welding technology
Input voltage 230 V / 50- 60 Hz
Input power capacity in KVA 5.5
Weight
Gross weight in kg 12
Net weight in kg 9
Shipping dimensions
Packaging width in mm 370
Packaging length in mm 500
Packaging height in mm 350
General data
EAN code
9120132140410
