Lumag Wood splitting machine HOS12NPRO

Lumag log splitter HOS12NPRO Vertical 400 Volt hydraulic Lumag log splitter HOS12NPRO with a splitting force of 12 tons. ...More information

Product description

  • Brand:Lumag
  • EAN:4047424007730
  • Article number:HOS12NPRO

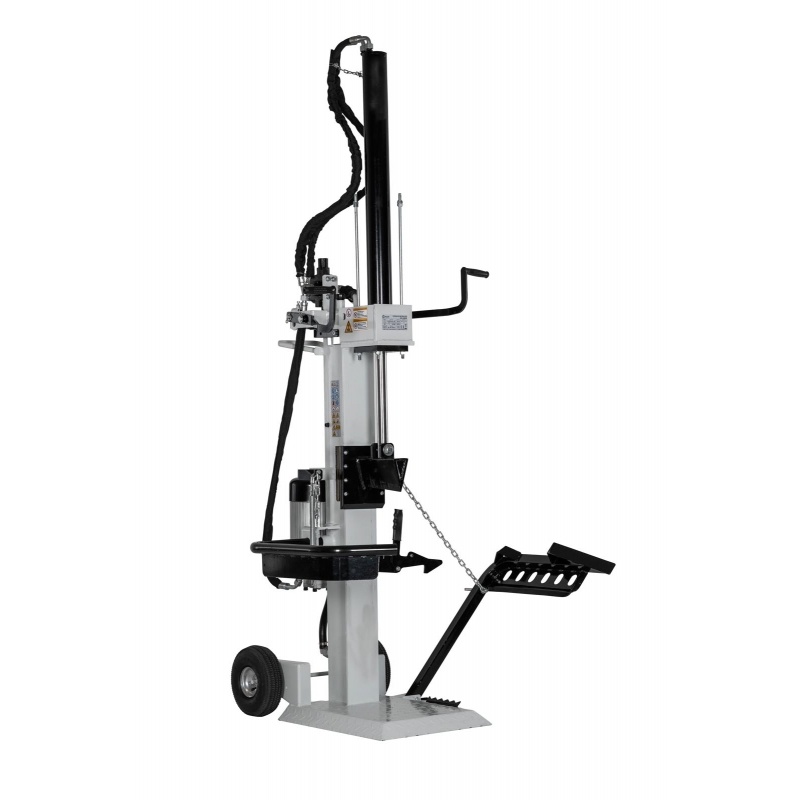

Lumag wood splitting machine HOS12NPRO

The HOS12NPRO is a vertical 400 Volt hydraulic Lumag log splitter with a splitting force of 12 tons. The ideal 400 volt machine for semi-professional and professional users. The robust and heavy construction guarantees high stability.

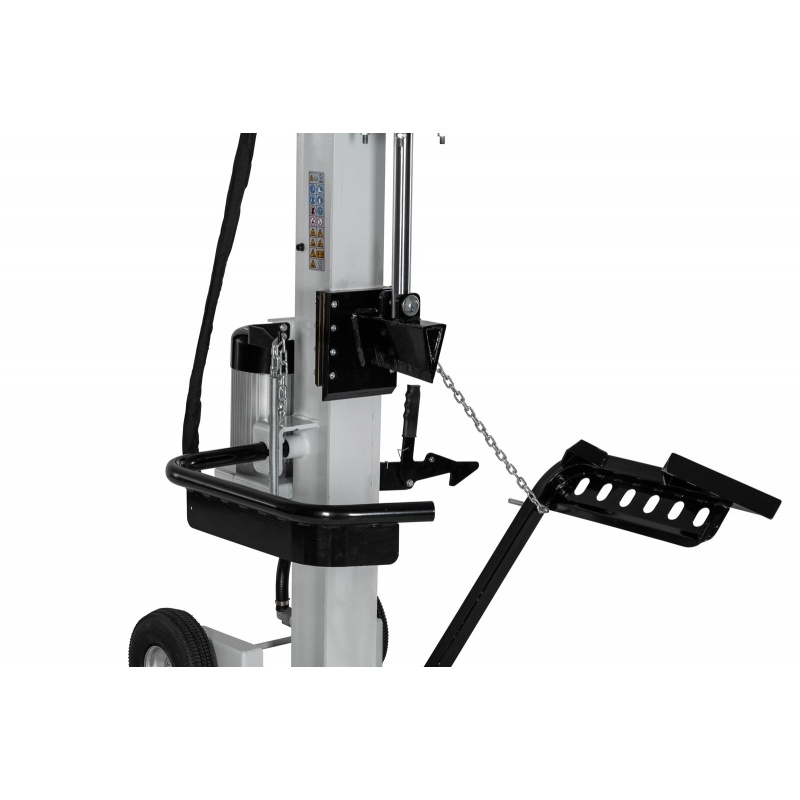

You can easily split various lengths up to a maximum of 1 meter. The big advantage of this type of splitting machine is that the cylinder is on the outside of the machine. This allows you to split the wood almost to the bottom plate. Ideal if you want to split longer lengths, but of course also suitable for shorter lengths. You can set the machine to 2 different splitting speeds. The Lumag HOS12PRO wood splitter is easy to load due to the low base plate. The bracket on the right can be used as a lever. This allows the splitter to raise a heavy tree trunk itself if you want to split it.

The machine has a continuously adjustable stroke length so that you can determine how far the splitter goes back. If you want to splice blocks of wood 60 cm long, you can set the splitter to stop at, for example, 70 cm. This means a huge gain of time. The very powerful 4800 Watt motor ensures pleasant working conditions.

The switch / plug combination is provided with a phase switch possibility. With 400 volt machines you can run a motor left or right. This also depends on the connection of your extension cable. In the switch you can easily 'reverse' the machine with a screwdriver so that it always runs in the right direction. The machine is equipped with large transport wheels as standard.

You also receive a 5 YEAR WARRANTY and a unique "30 day money back guarantee". So if you are not satisfied with this wood splitter, you can return this machine within 30 days (so you can just start splitting wood with it!).

Engine type 400 Volt-50Hz electric motor
Engine power 4800 Watt (Power consumption)
Engine power 3700 watts (power output)
Motor protection class IP54
Engine speed 1420 rpm
Splitting power 12 tons
PTO drive No
Maximum gap length 550-1000mm
Gap section 100-400 mm
Working speed 6.4 cm / s
Adjustable stroke length Yes
Return speed 4.8 cm / s
Max hydraulic pressure 20MPa
Oil tank content 15 liters
Extension cable No
Gross weight 260 kg (including packaging)
Weight 245 kg (machine weight)
Dimensions (basic position) L x W x H 988 x 850 x 2500 mm
Pack sizes (L / W / H) 1150 x 1140 x 2200 mm
Art. no. HOS12NPRO
EAN code 4047424007730
