Lumag Wood splitting machine HZ22

Lumag HZ22 log splitter The Lumag HZ22 is a vertical (professional) hydraulic log splitter with a splitting force of 22 tons. You can only use the machine with a PTO shaft. ...More information

Product description

  • Brand:Lumag
  • EAN:4047424009116
  • Article number:HZ22

Lumag wood splitter HZ22

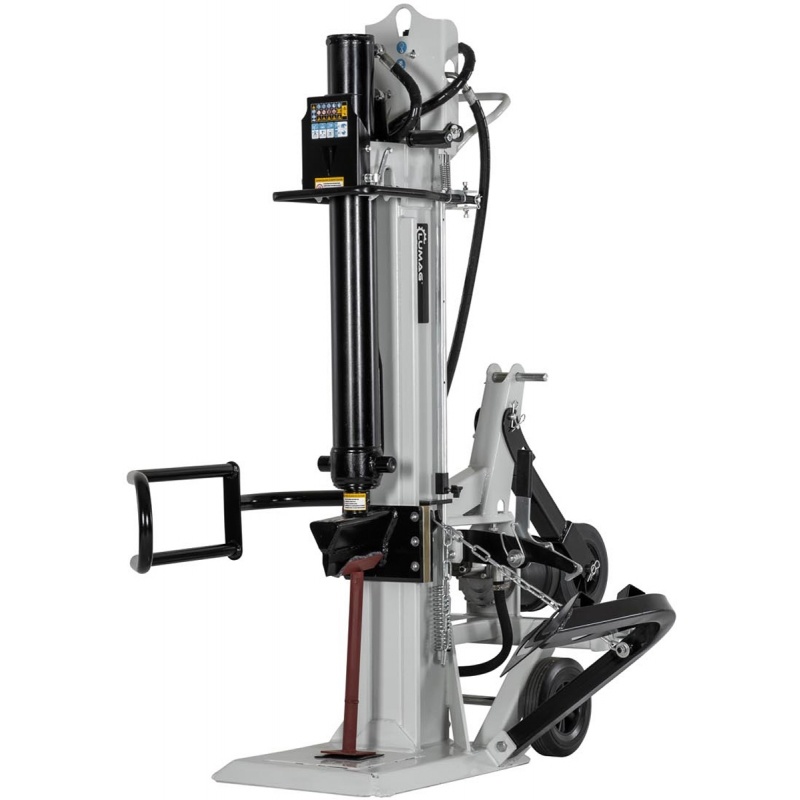

The Lumag HZ22 is a vertical (professional) hydraulic log splitter with a splitting force of 22 tonnes (± 10%). You can use the machine by driving with a PTO shaft. You can use the machine by using the PTO connection in combination with a tractor (min. 20 hp, PTO speed 540 rpm). The machine is designed for professional users, so it is also very suitable for semi-professional users. The robust and heavy construction in combination with the professional construction of this machine guarantee high stability.

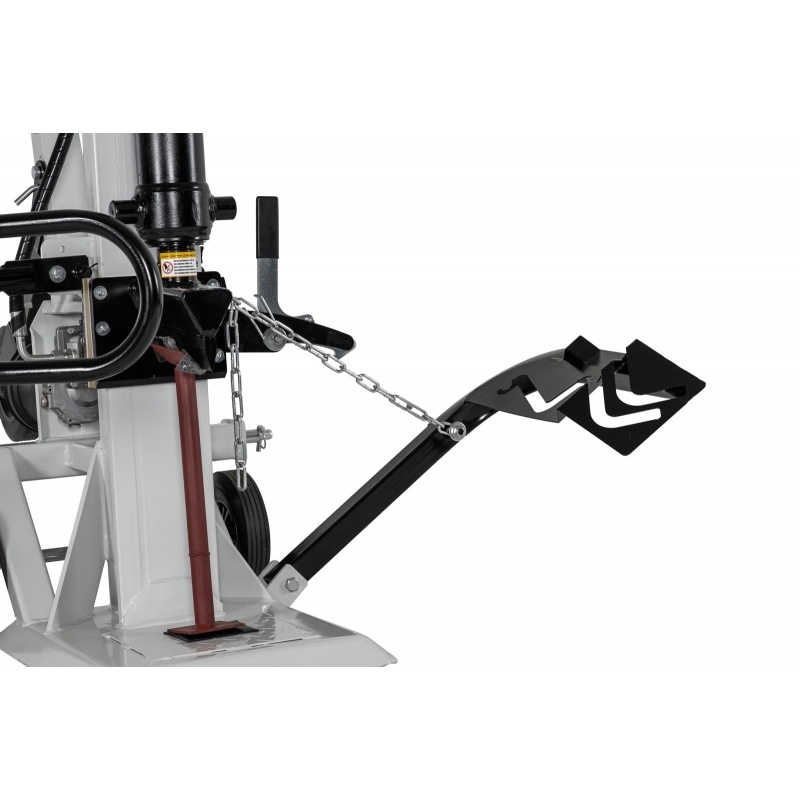

You can easily split various lengths up to a maximum of 1100 mm (1.1 meters). The big advantage of this type of splitting machine is that the cylinder is on the outside of the machine. This allows you to split the wood to the bottom plate. Especially ideal if you want to split longer lengths. You can set the machine to 2 different splitting speeds. The slow speed for more power and the high speed if the splitting is easier. The Lumag HZ22 log splitter is easy to load due to the low base plate. The bracket on the right can be used as a lever. With this you can put a heavy tree trunk upright. The machine itself ensures that the heavy log is set upright. The splitting machine is equipped with an extra reinforced three-point suspension (Kat. I + II)

The machine has a continuously adjustable stroke length so that you can determine how far the splitter goes back. If you want to split blocks of wood 50 cm long, you can set the splitter to stop at 60 cm, for example. This means a huge gain of time.

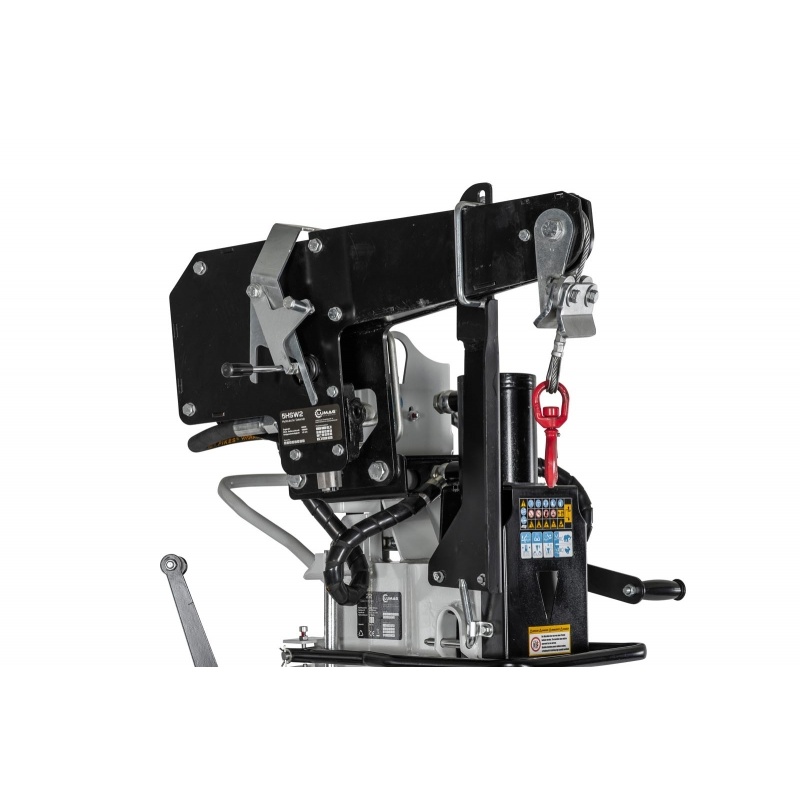

The PTO itself is not included. A hoist / winch is also available as an accessory for the HZ22 log splitter. With this you can lift wood (heavy logs) or hoist it in the direction of the wood splitter. The article number of the hoist / winch is 5HSW2.

PTO drive Yes, via a tractor with at least around 20 hp.
PTO shaft speed 540 rpm
Splitting power 22 Ton (± 10%)
Maximum gap length 560 - 1100 mm
Gap section 80 - 350 mm
Max stroke length cylinder 94.8 cm
Adjustable stroke length Yes
Working speed 4.3 or 10.5 cm per sec.
Return speed 7.5 cm per sec.
Number of working speed settings 2 positions
Three-point suspension Yes, Kat. I + II
Max hydraulic pressure 27.5 MPa, max. 24 liters of hydr. oil
Extension cable No
Dimensions (basic position) L x W x H 110 x 150 x 250 cm
Pack sizes (L / W / H) 94 x 68 x 200 cm
Net / gross weight 287 kg / 299 kg
Art. no. HZ22
EAN 4047424009116
