Saw splitter SSA400E

Lumag saw splitter SSA400E

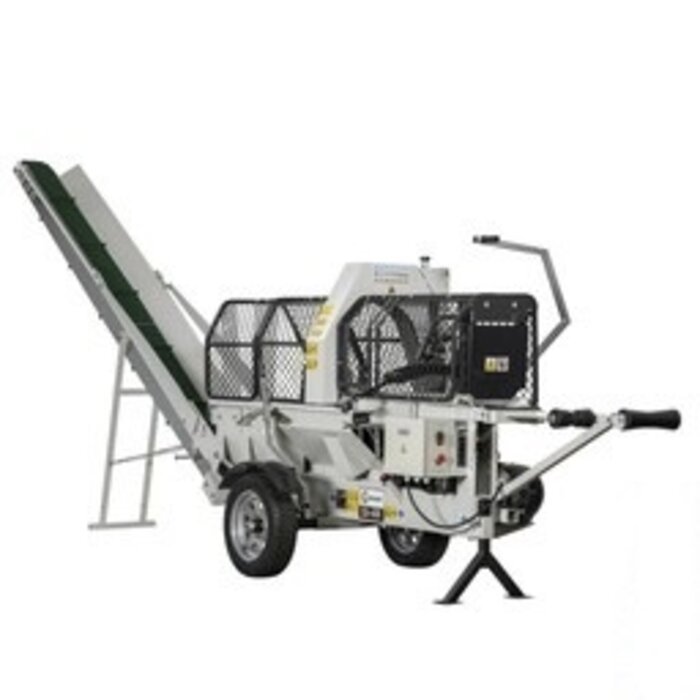

This unique professional 400 Volt saw and splitter SSA400E from Lumag combines three machines in one.
The machine cuts your wood to the desired length and then splits the sawn piece of wood into 2 or 4 parts.
The split wood parts are then removed via a conveyor belt.

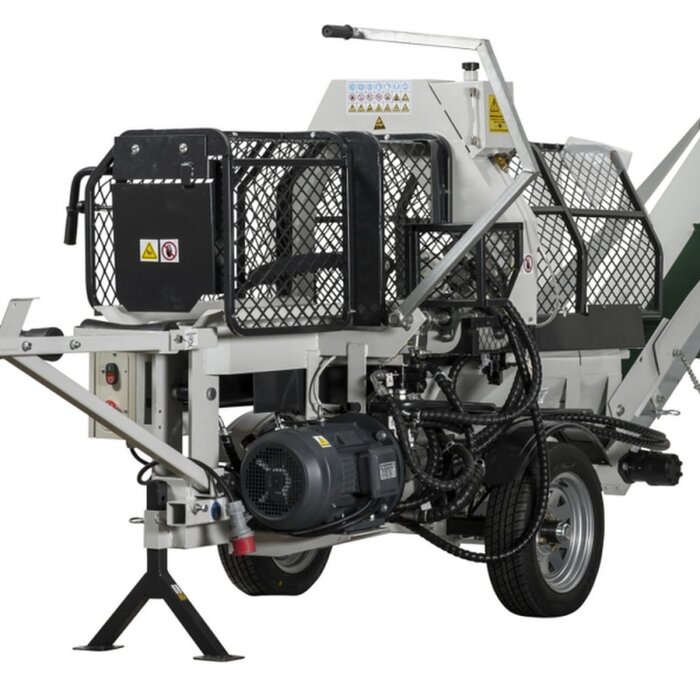

The saw-splitter is equipped with a powerful 7500 Watt, 16A electric motor, which means that it can be used anywhere.

This unique professional 400 Volt saw and splitter SSA400E from Lumag combines three machines in one. The machine cuts your wood to the desired length and then splits the sawn piece of wood into 2 or 4 parts. The split wood parts are then removed via a conveyor belt.

The saw-splitter is equipped with a powerful 7500, 16A Watt electric motor. The advantage of an electric motor is of course no engine noises or exhaust gases, so working in an environmentally friendly way. You can split wood very safely with this machine, but of course your splitting yield is much higher than if you have to perform both operations (splitting and sawing) separately.

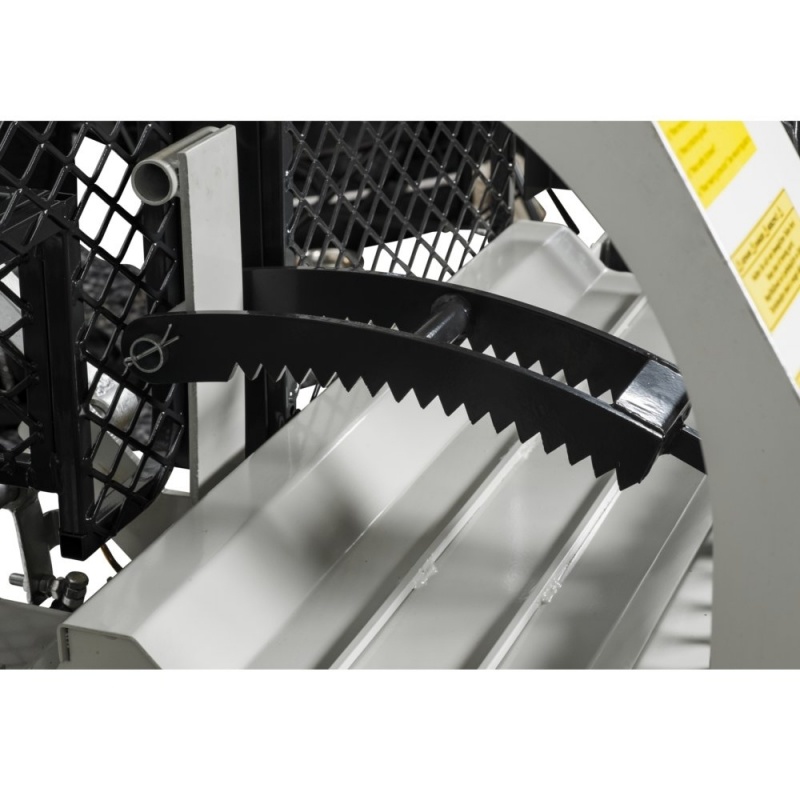

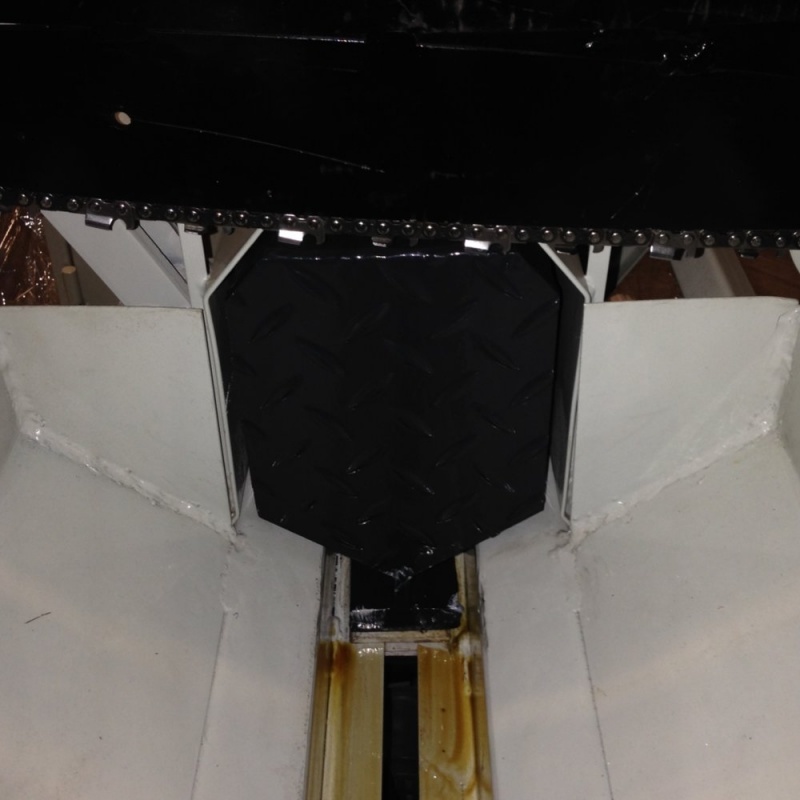

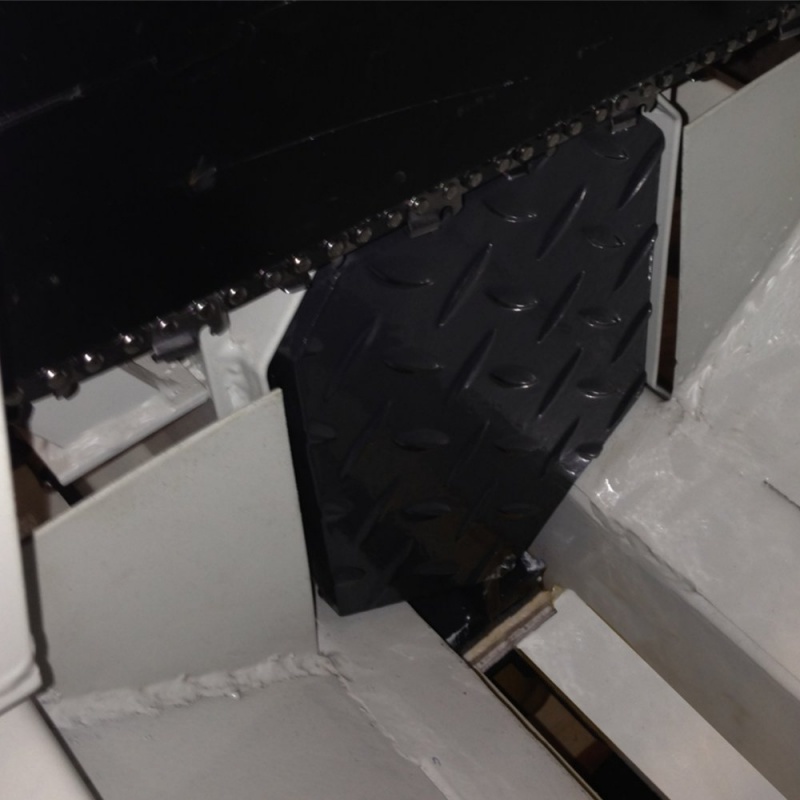

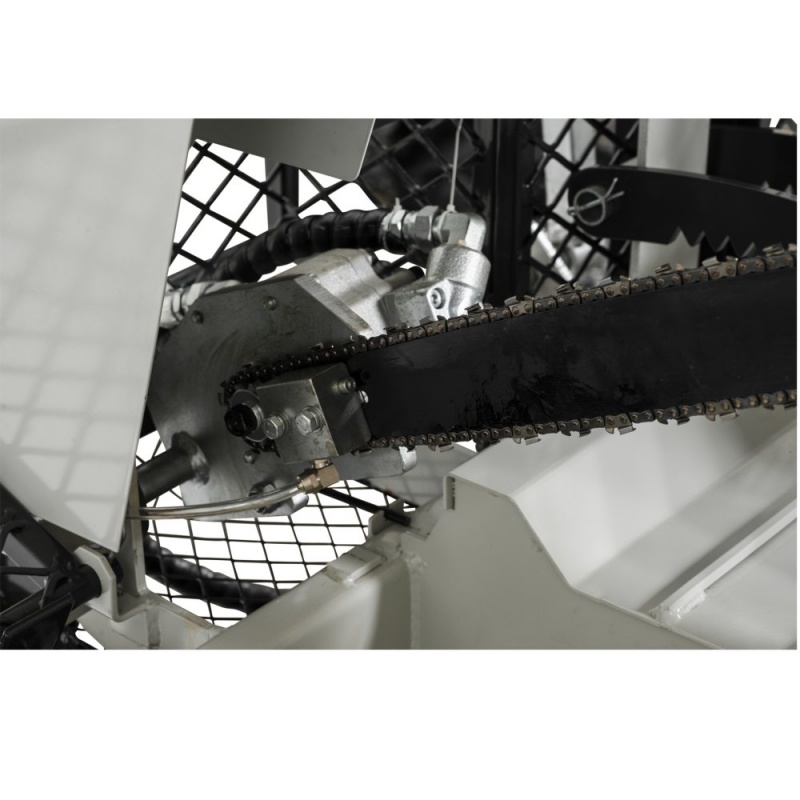

You can supply logs up to 38cm in diameter. With a hydraulically driven chainsaw (saw blade length 500mm) you cut the log to the desired length, the wood then falls in front of the splitting device, which will split the wood with a hydraulic splitting force of 10 tons. Then the wood comes on a 3.2 meter long conveyor belt that transports it to a location of your choice (you make a mountain of split wood or drop the wood directly into transport or trailer). The maximum discharge height is 2 meters. Splitting and sawing can be done simultaneously by using two hydraulic pumps.

The machine can split up to 5-8 cubic meters per hour on average. Of course, factors such as supply, equal trunk thickness and type of wood are important. The machine stands on a transport undercarriage and is equipped with a towbar coupling (only to be used on your own property).

The video shows the SSA400G. The machine is identical to the SSA400E in terms of sawing and splitting capabilities. The machine in the video uses various optional accessories such as a hydraulic log lifting installation, a hydraulic log supply and a 6-piece splitting cross. Every machine comes standard with a 4-piece splitting cross

Motor splitter 400 Volt/ 50Hz, 7500 Watt (7.5kW), 16A
Splitting force 10 tons
max. gap length 20-55cm
Saw/split diameter max. 380mm
Splitting speed forward 13.75 cm/sec.
Back splitting speed 18.33 cm/sec.
Engine chainsaw Hydraulic, max. 7,200 rpm.
Sword length 50cm
Sword chain K2L-BL-072, 325.058"/ 1,5mm
Length conveyor belt (LxWxH) 3200 x 150 x 2800mm
Conveyor belt speed Hydraulic motor, max. 284 rpm. per min./110 bar/ 285Nm, 0.8 m. per sec.
Packaging sizes (L/W/H) machine: 1800 / 720 / 1100 mm, conveyor belt 1860 / 580 / 430mm
Weight net/gross 415 Kg
art. no. SSA400E
EAN code 4047424006931
