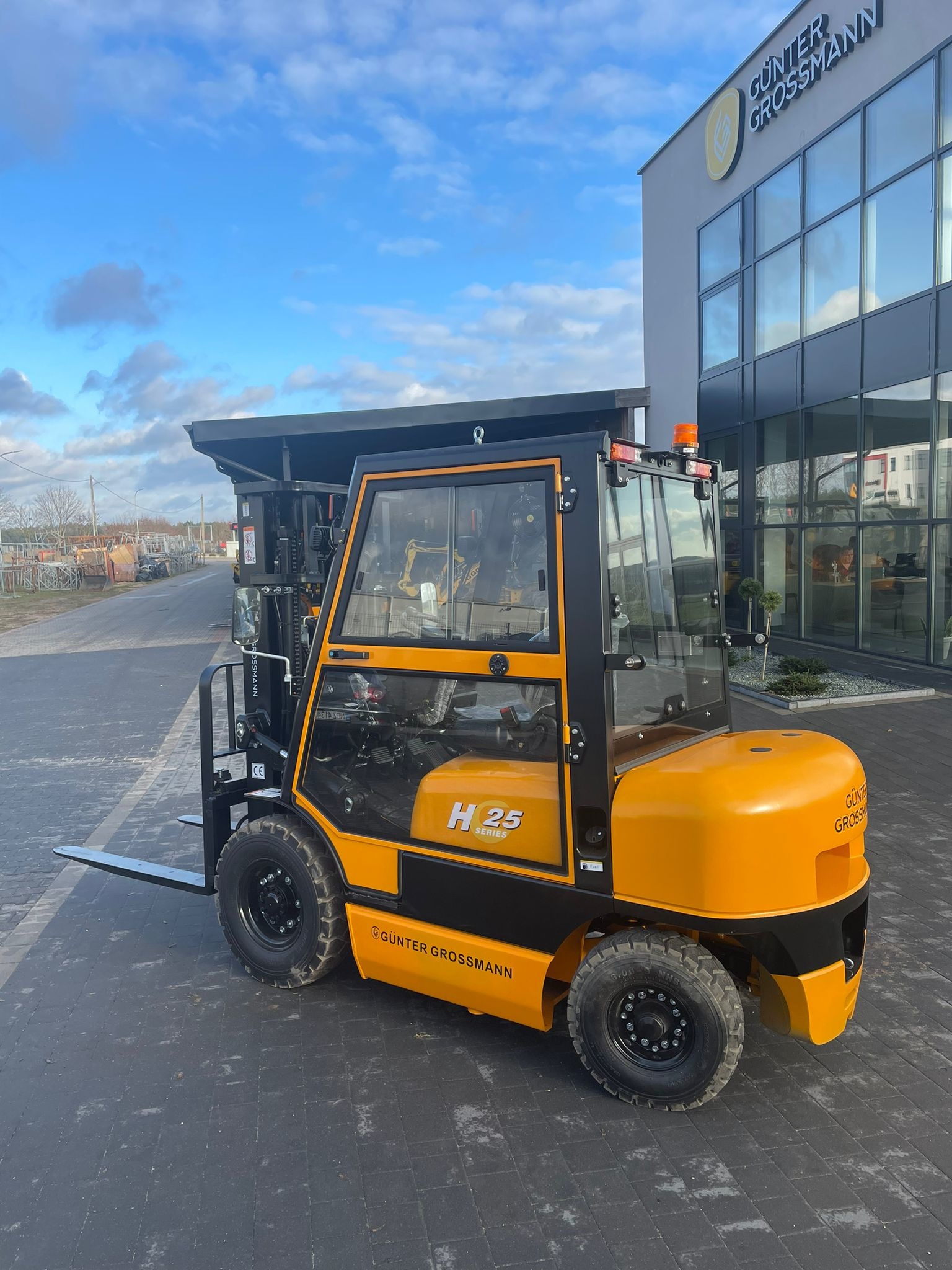

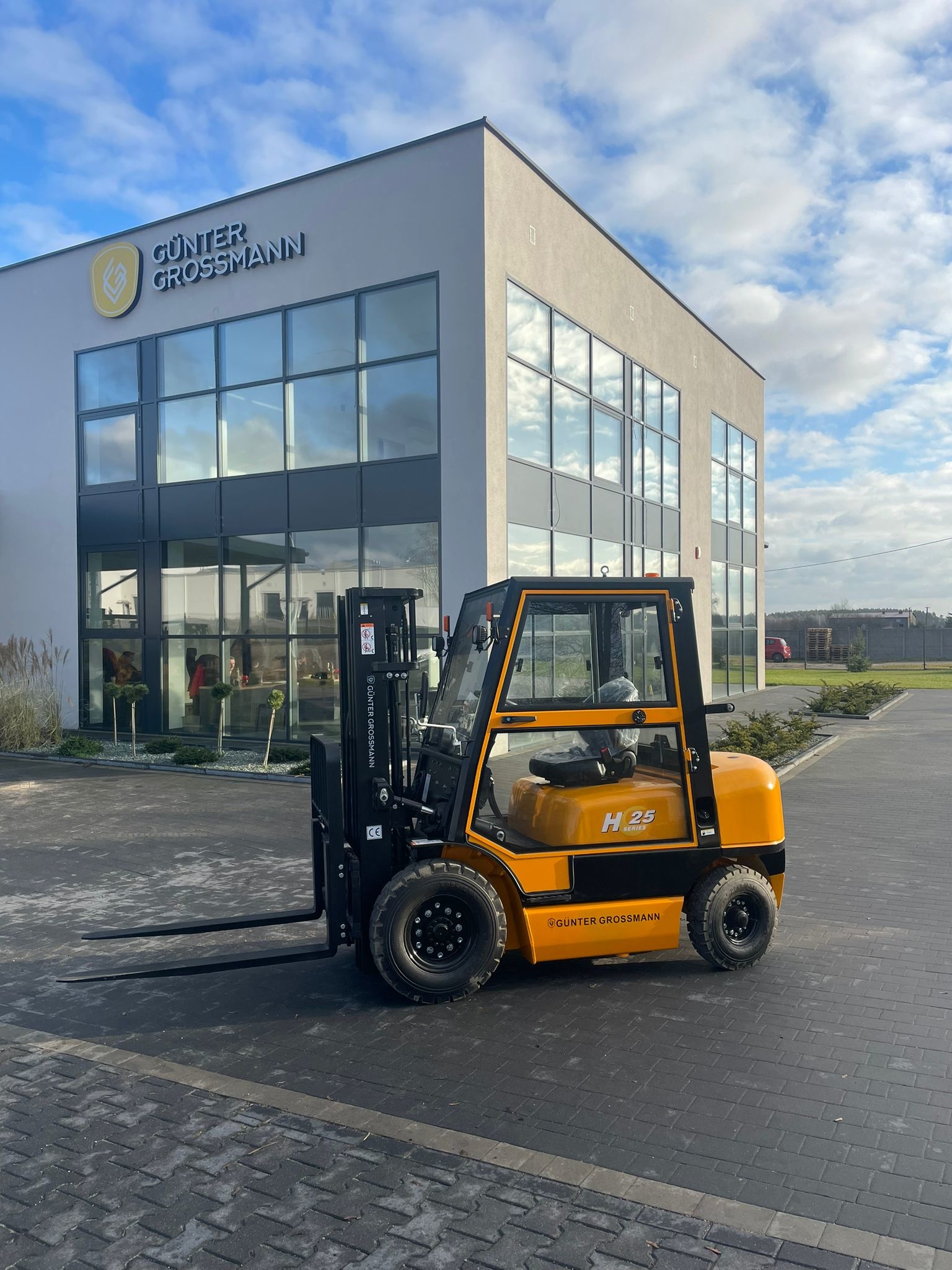

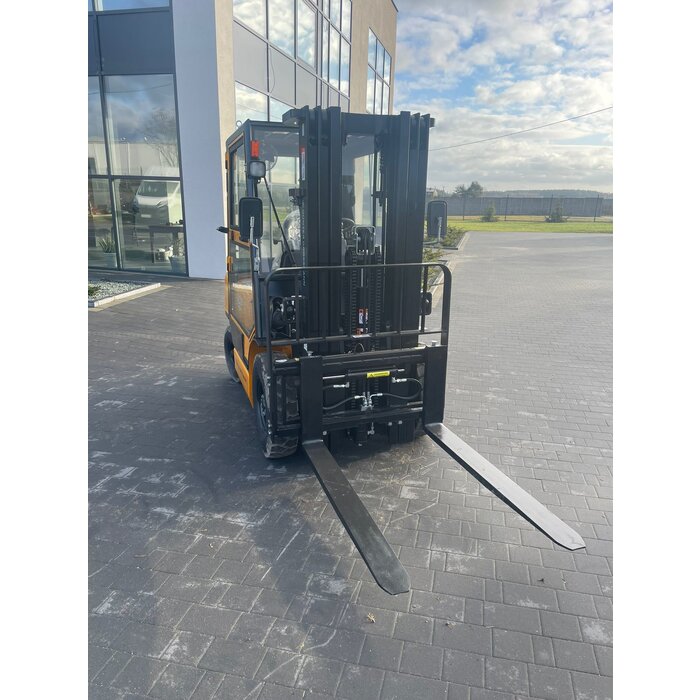

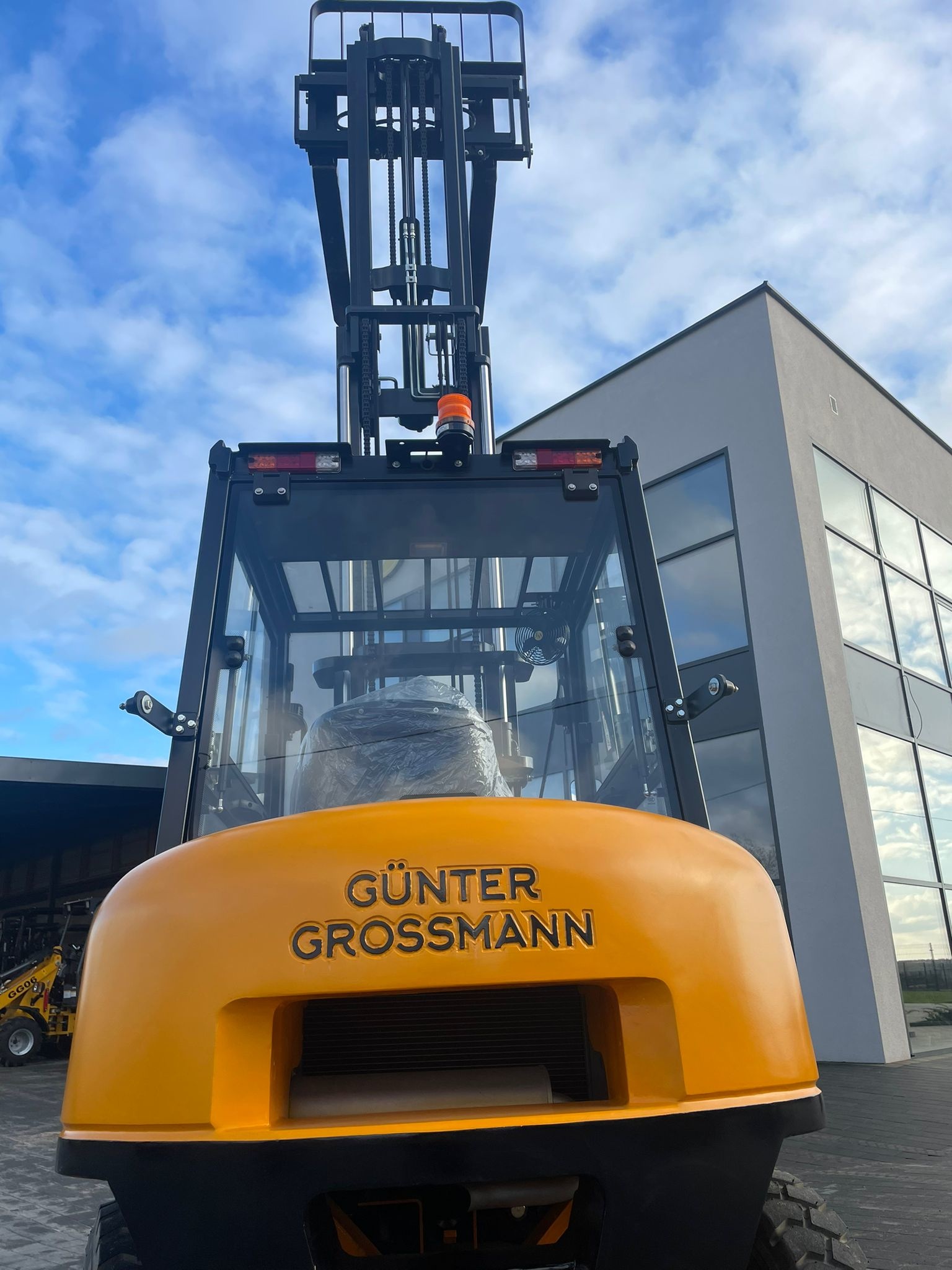

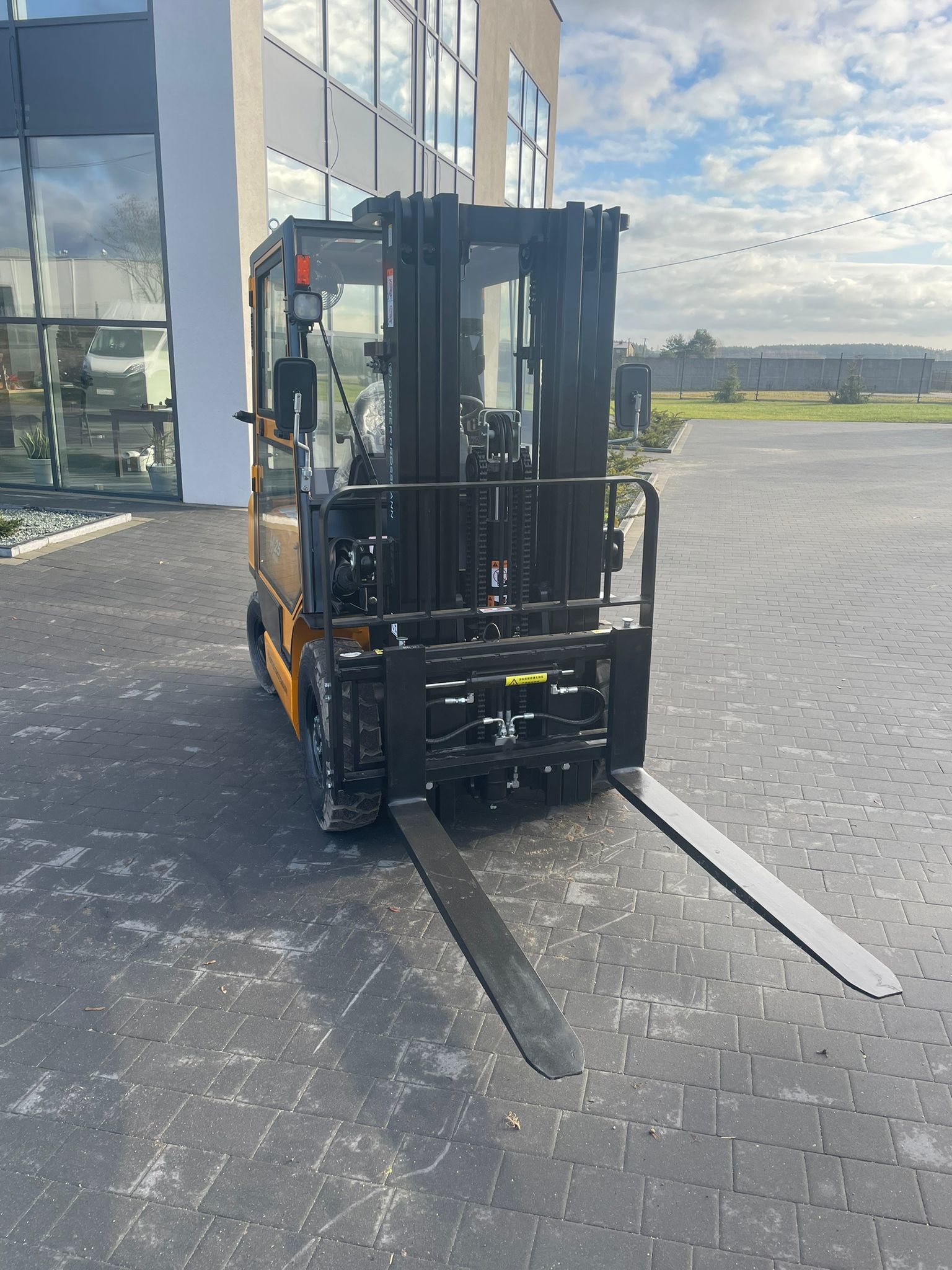

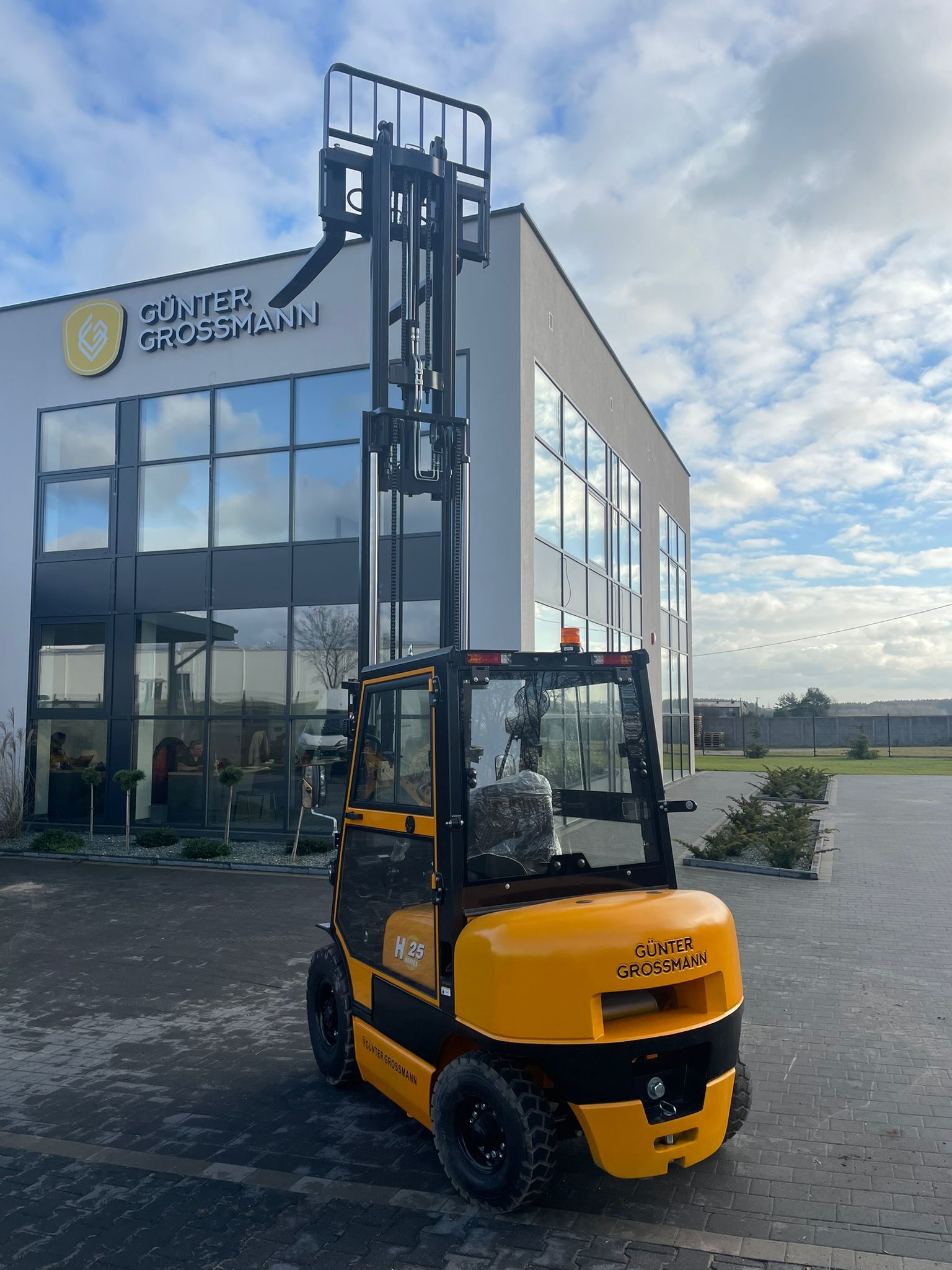

3.0 T Forklift truck diesel cab

2.5T forklift diesel cab

2.5T forklift diesel cab

New model from 2022
Capacity: 2500 kg
Mast: Duplex 3000mm
Drive: C490BPG diesel
Gearbox: automatic
Lifting height: 3m
Tyres: pneumatic
side shift integrated

SPECIFICATIONS
2.5 tons - 3m.

Model: Gunter Grossmann 2500kg

Weight: 3680kg
Capacity: 2500 kg
Lifting height: 3 meters
Mast: Duplex
Tire type: Pneumatic
Brake: hydraulic pedal
Battery V/AH: 12/80
Engine: XINCHANG C490BPG
Number of cylinders: 4
Rated power kW / rpm: 36.8 / 2650
Rated torque Nm / rpm: 160 / 1800-1900
Tank capacity: 60L

MEASUREMENTS

Length: 2600mm
Width: 1170mm
Height: 2070mm
Fork size: 1200mm x 120mm x 40mm

WORKING RANGE

Speed km/h: 17/19
Speed with load mm/s: 450/550
Maximum pull force KN: 21 / 15.2
Min. turning radius: 2240 mm

delivery time on request
