Description
Read moreRead less

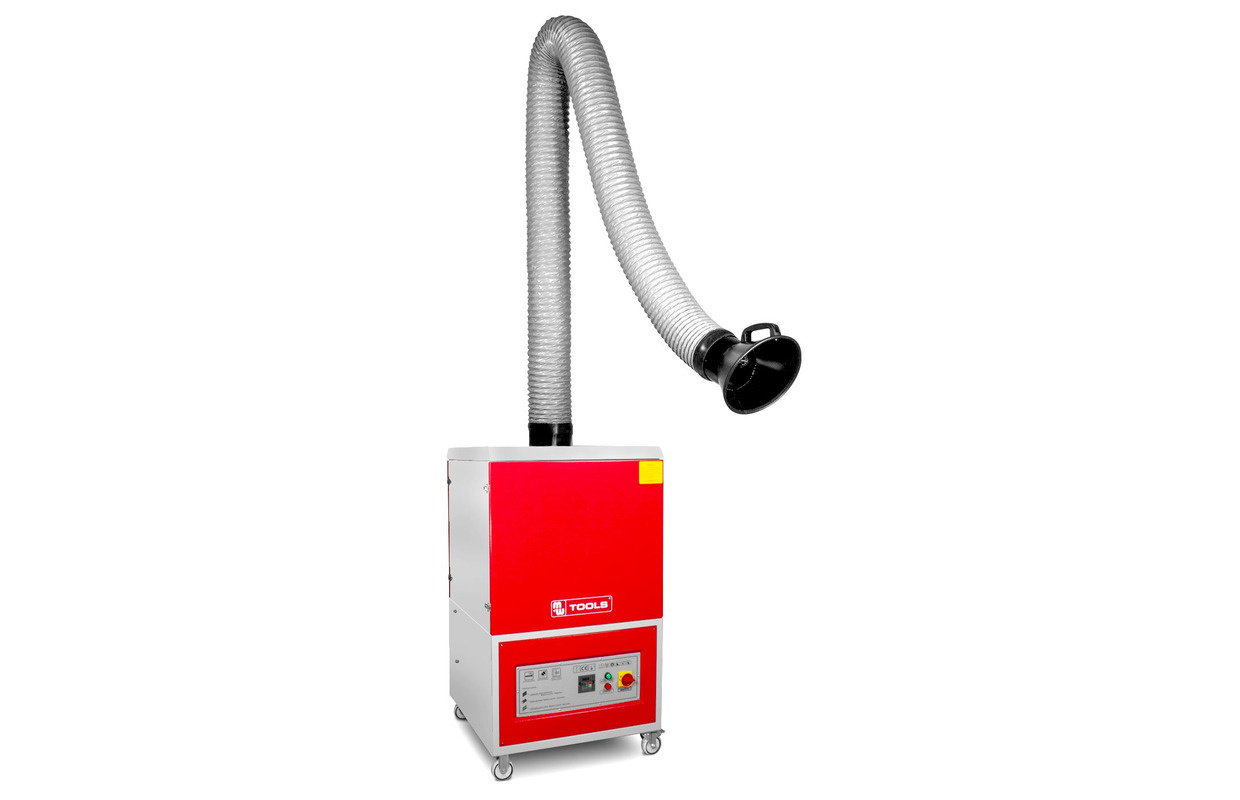

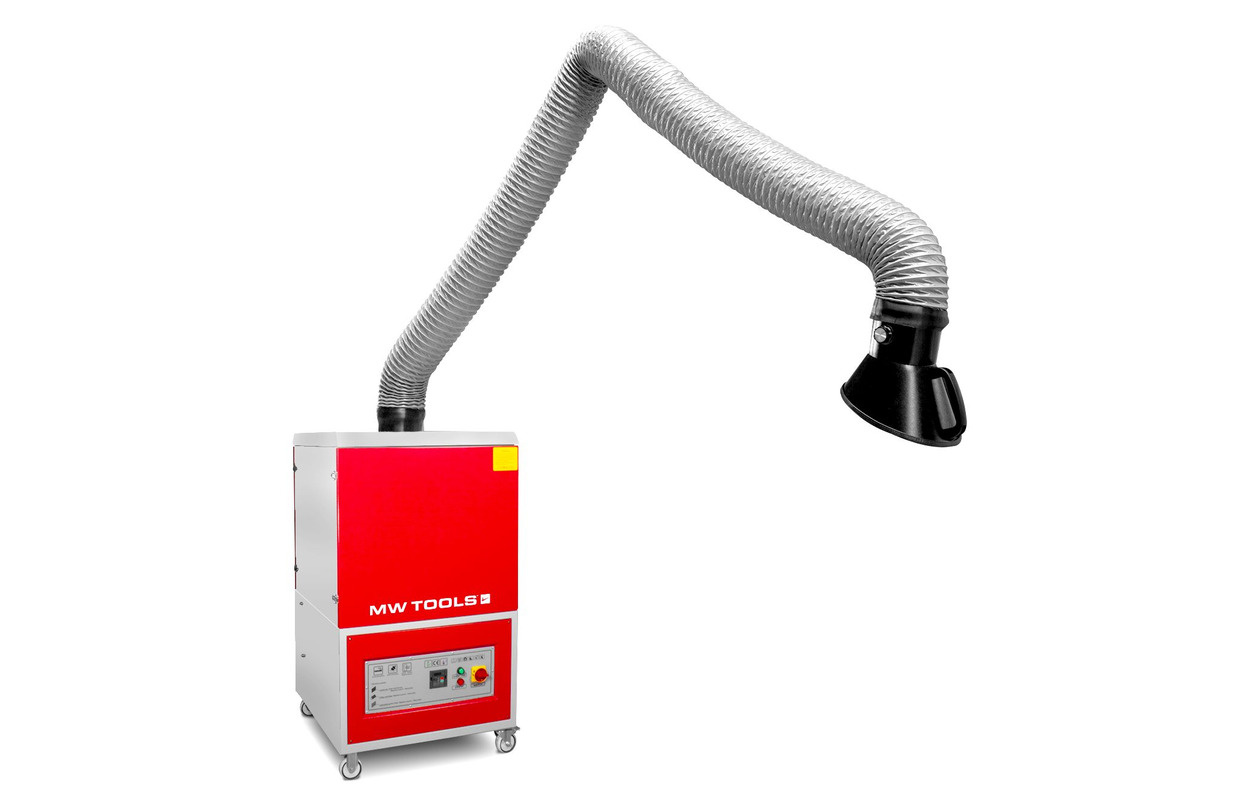

Mobile welding extraction 2600m³/h 2.2kW 3x400V MW Tools
Mobile welding fume extraction unit 3x400V for welding fumes with 1 arm and flow rate 2600 m³/h
Air filter unit with filter cleaning.
Advantages:
- Filters welding fumes with a high-quality HEPA filter
- Supplied complete with all filters and flexible arm
- High extraction capacity, 2600m³/h
- Supplied with 1 extraction arm of 3 meters, and expandable with 2nd arm (optional)
- Built-in filter cleaning with compressed air pulse
Features:

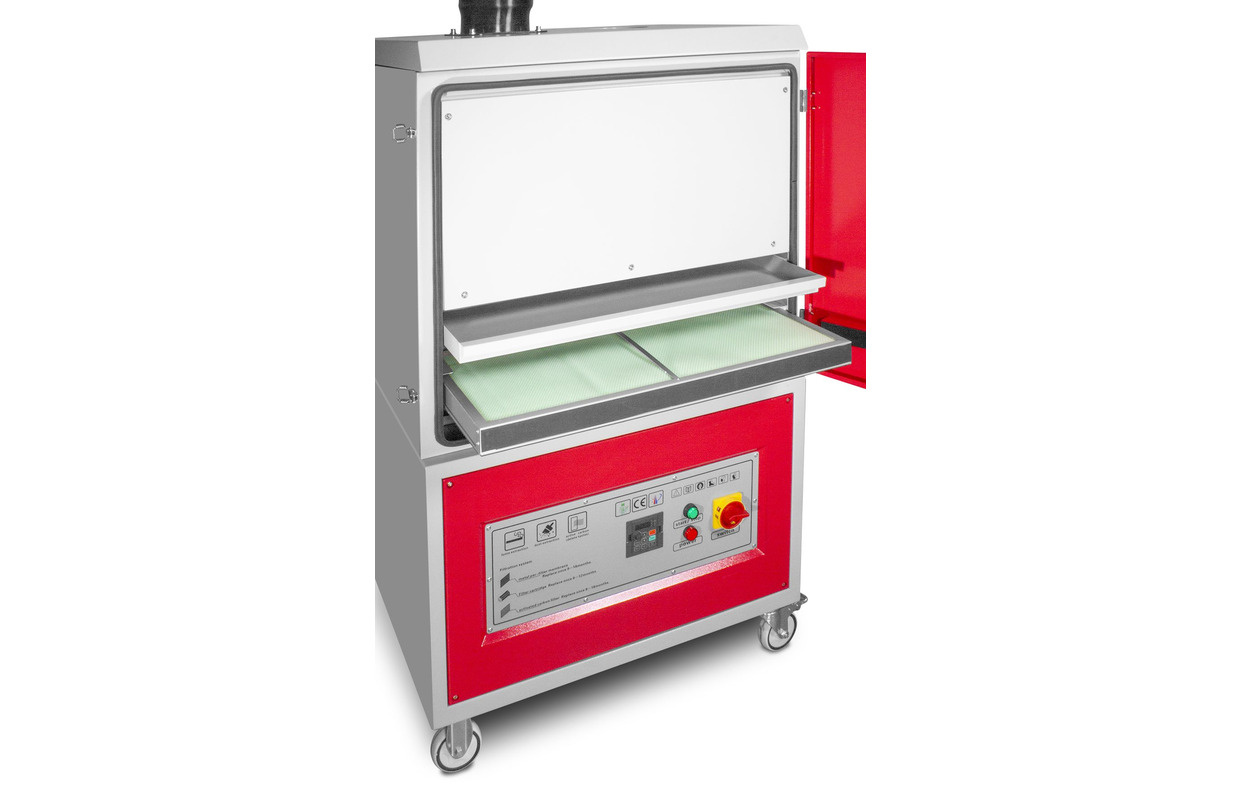

- High filter accuracy due to 3-stage filtration : fireproof stainless steel filter, HEPA filter and carbon filter for odor filtering
- The machine is supplied as standard with 1 filter of each type
- Double HEPA filter with 0.5 µm precision made of PFTE, filters the finest harmful substances up to 99% from the welding fumes
- Large filter surface of 36 m²

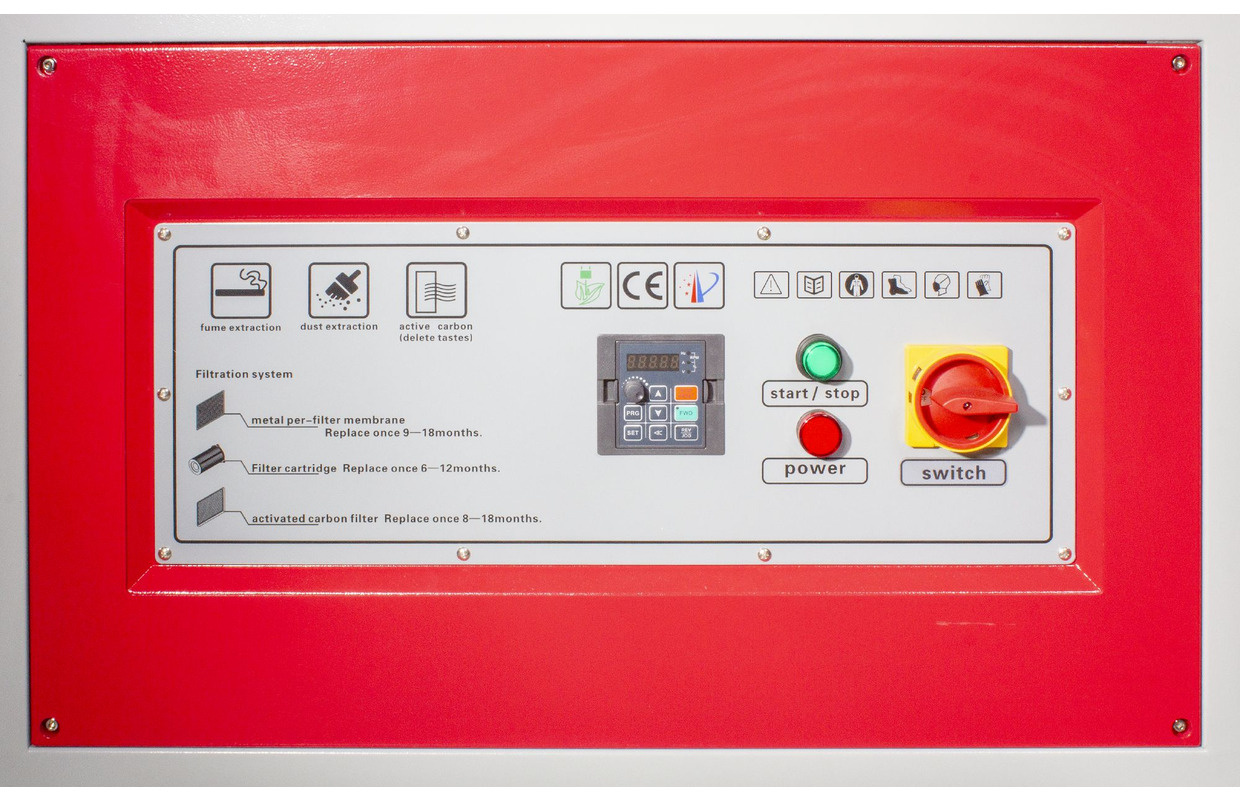

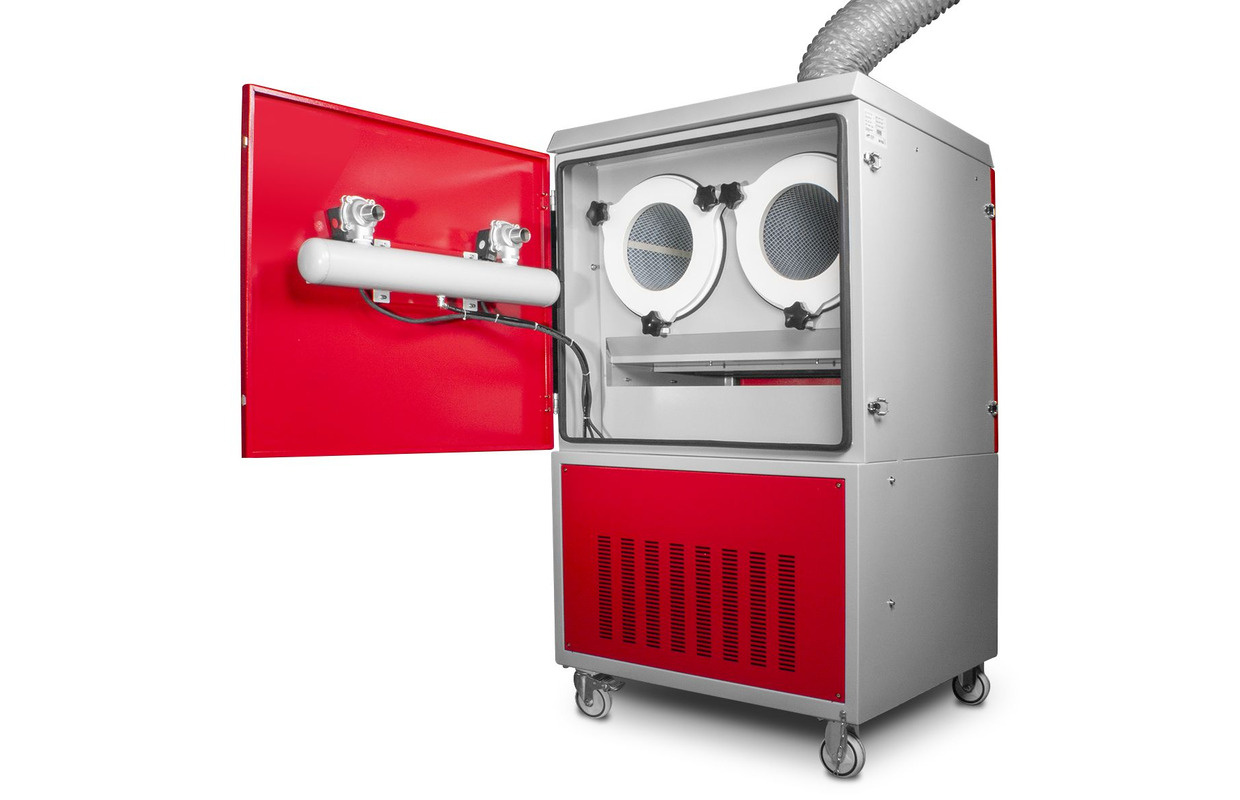

- Filter cleaning with compressed air pulse via a push button on the control panel. Includes a removable 20-liter steel dust container. The machine is connected to a compressed air line with a pressure of 4 to 6 bar.
- Maximum flow rate of 2600 m³ at the engine inlet.
- Effective flow rate of 1400m³ at the inlet of the extraction nozzle
- 3x400V 2.2kW motor with fixed exhaust airflow. Variable control on the unit regulates the motor's delayed start and stop.
- Purified air is returned to the workshop via recirculation
- Maximum flue gas temperature: 65°C. This welding fume extraction system is designed for welding fumes and is not suitable for fumes, gases, or vapors with other compositions or temperatures.
- Stainless steel arm structure with 3 hinges for free positioning as desired
- 360° smoothly rotating arm, 3 meters long , 150 mm diameter. The high throughput of this machine allows for the connection of a second optional extraction arm.
- Heat-resistant hose and plastic suction nozzle
- Collection container for slag and dust
- 4 sturdy swivel wheels with brakes
- Overload protection
- Suitable for use in a working environment where no ATEX zone applies.
Consumables:
- Spark-proof filter (829000158). Can be cleaned with water.
- HEPA filter (829000153). Average lifespan: 9 months
- Carbon filter (829000159). Average lifespan: 5 months
Options:
- 360° rotating arm 3 meters (829000143)
Optional compressors:
- Silent compressor, 50 liter tank 1.1 Kw with flow rate 280 liters/minute (8551403106)
- Compressor Silent, 100 liter tank 2.2 Kw with flow rate 480 liters/minute (8551403108)
- Compressor 100 liter tank 2.2 Kw with flow rate 480 liters/minute (8551404000)
- Compressor 200 liter tank 2.2 Kw with flow rate 300 liters/minute (8551404010)
Specifications
Order no. | 829000142 |
|---|---|
Original song | LA2801 |
General | |
Voltage V | 3x400 |
Power kW | 2.2 |
Flow rate m³/h | 1400 |
Maximum flow rate m³/h | 2600 |
Sound power level - LwA dB(A) | 75 |
Arm length mm | 3000 |
Arm diameter mm | 150 |
For type | welding fumes |
Precision | 0.5 µm/99% |
Filter surface m² | 36 |
Product information | |
Length mm | 700 |
Width mm | 650 |
Height mm | 1620 |
Weight kg | 219.00 |
