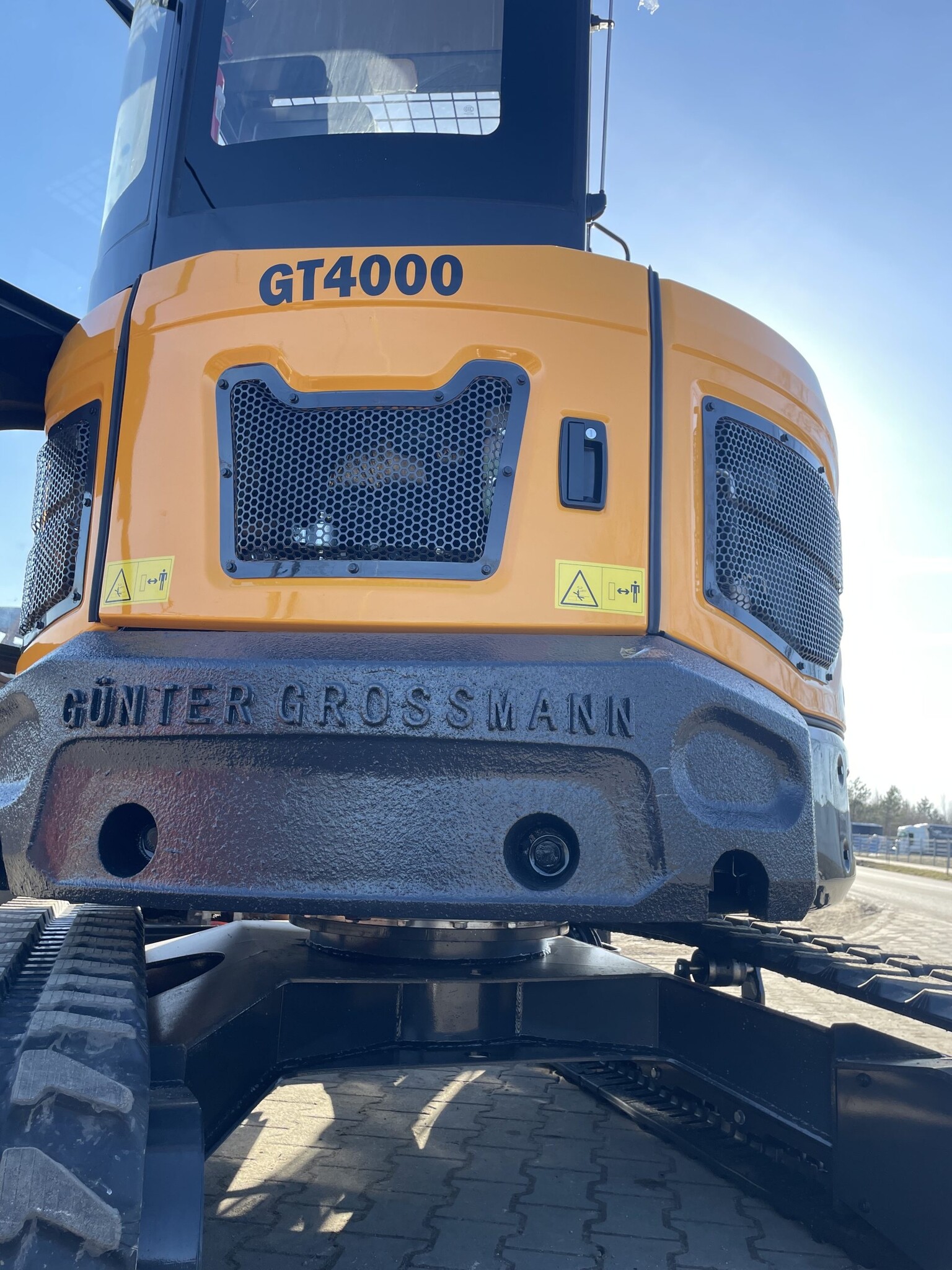

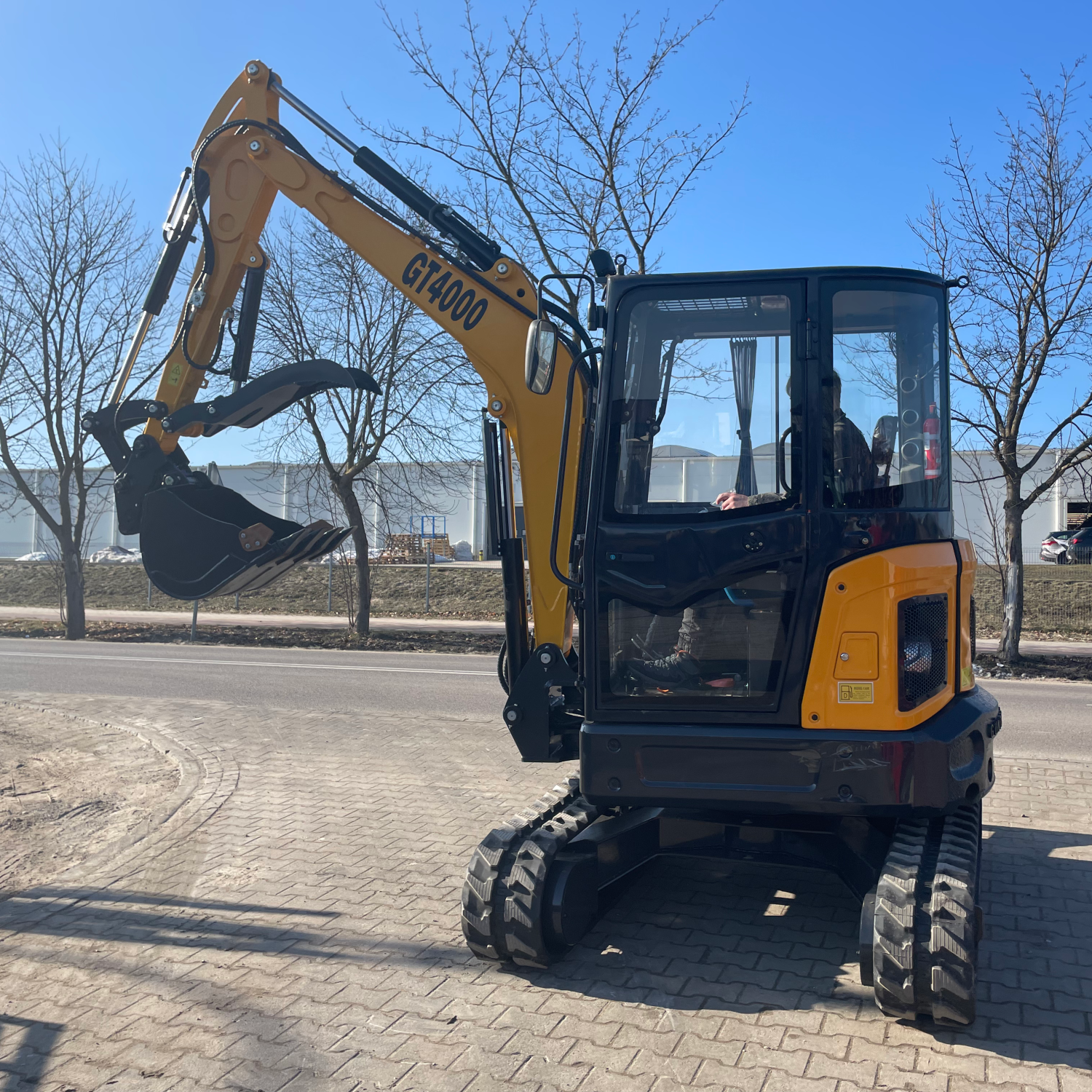

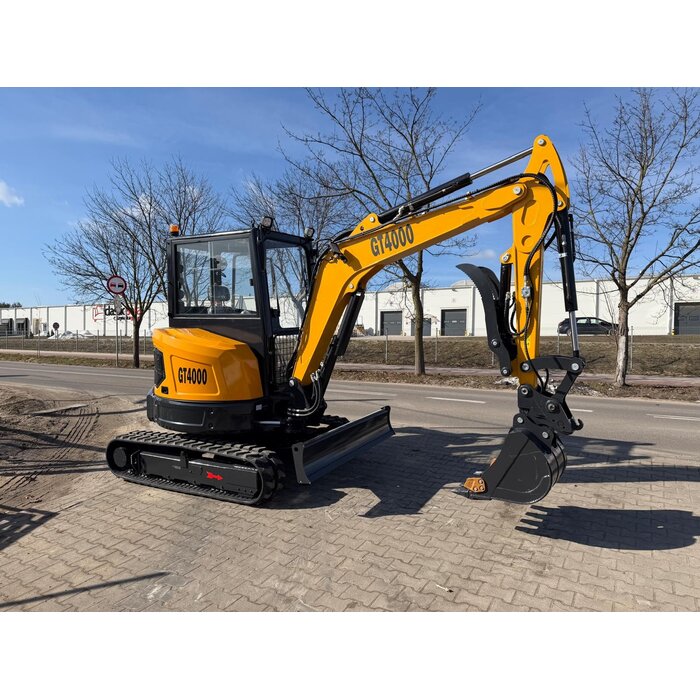

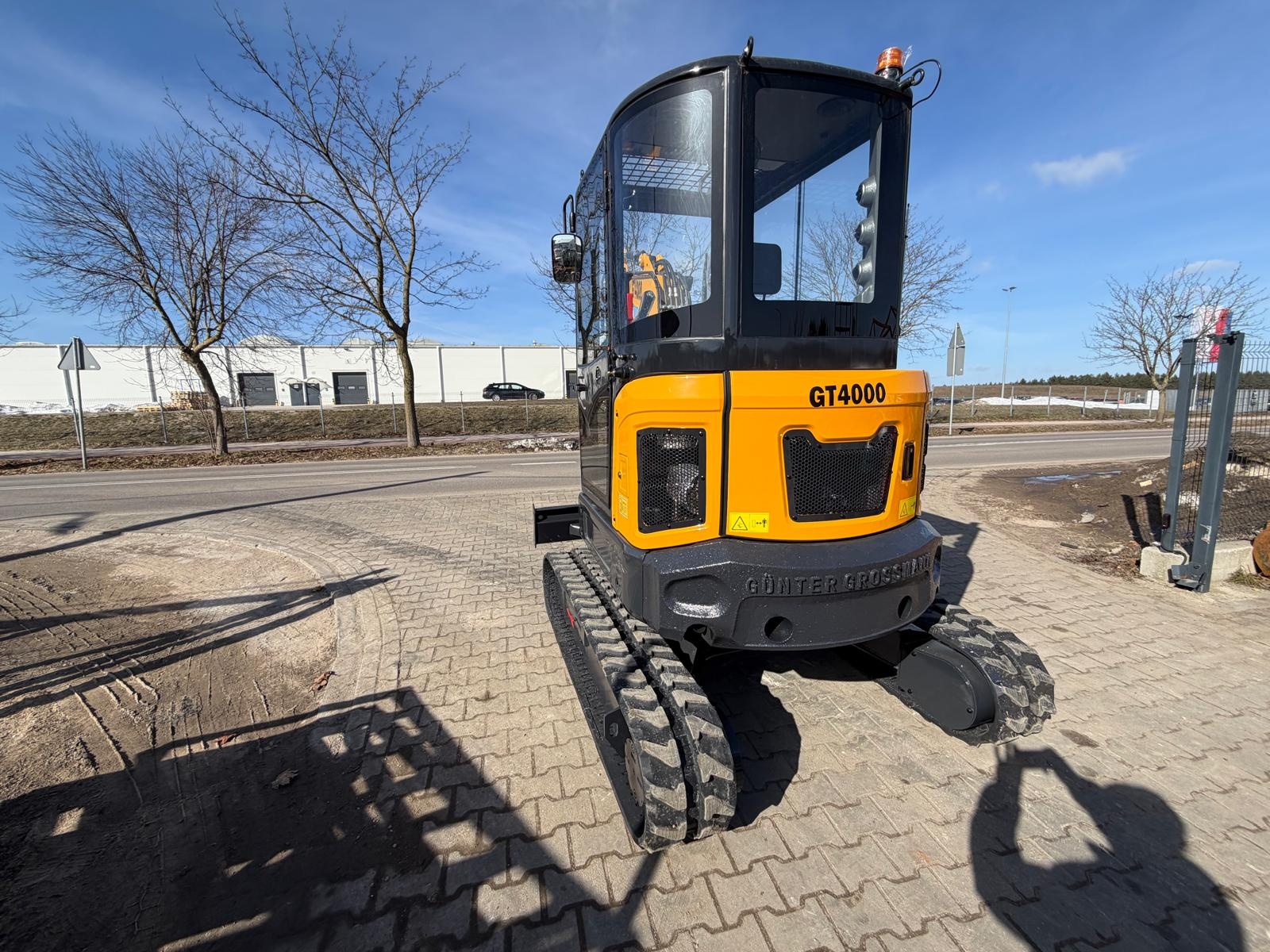

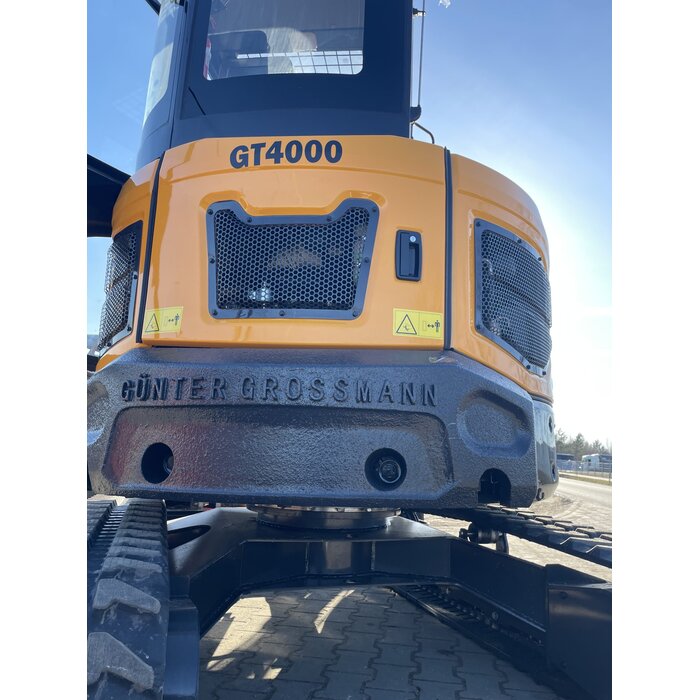

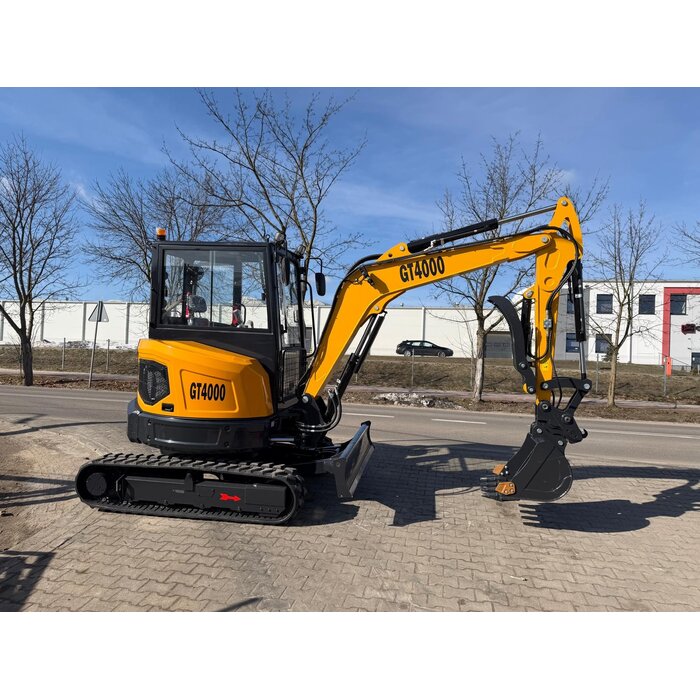

GT4000 mini excavator
GT4000 mini excavator

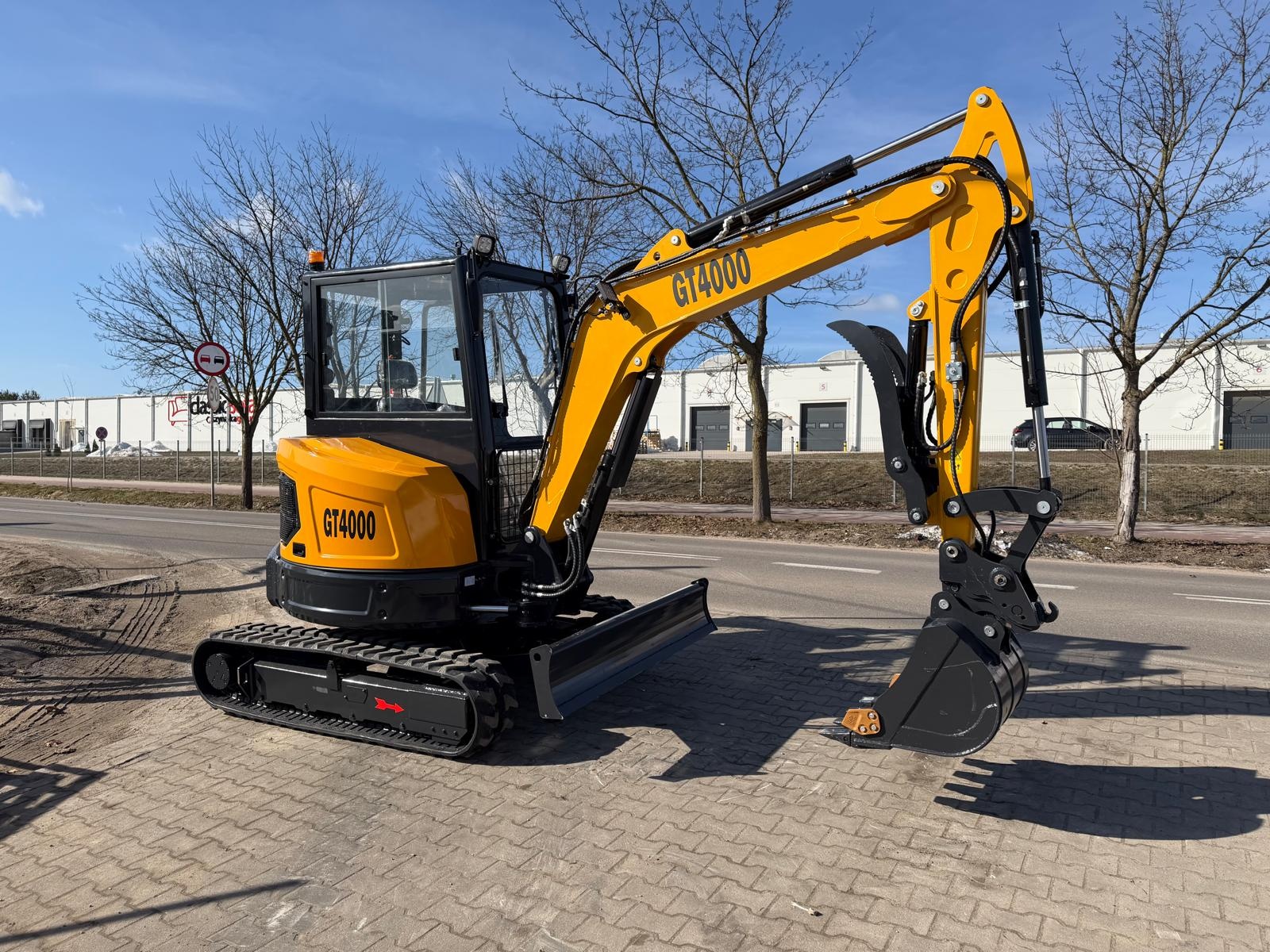

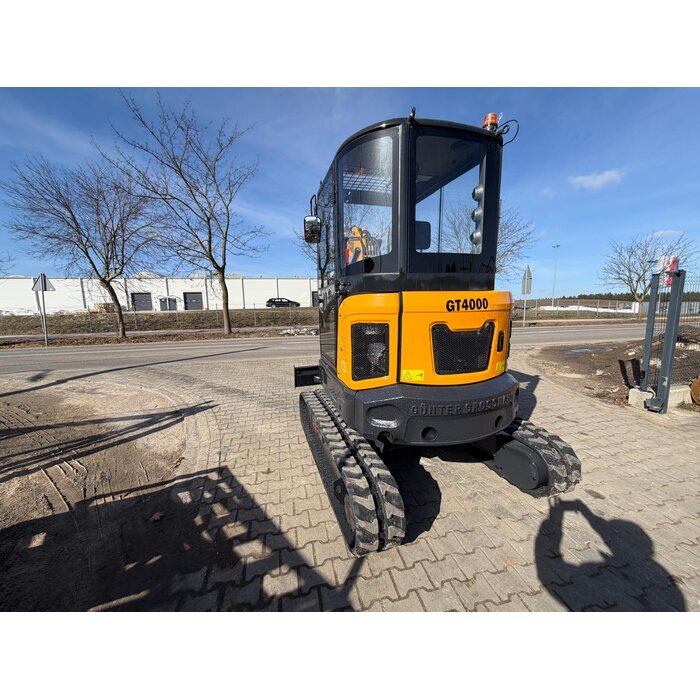

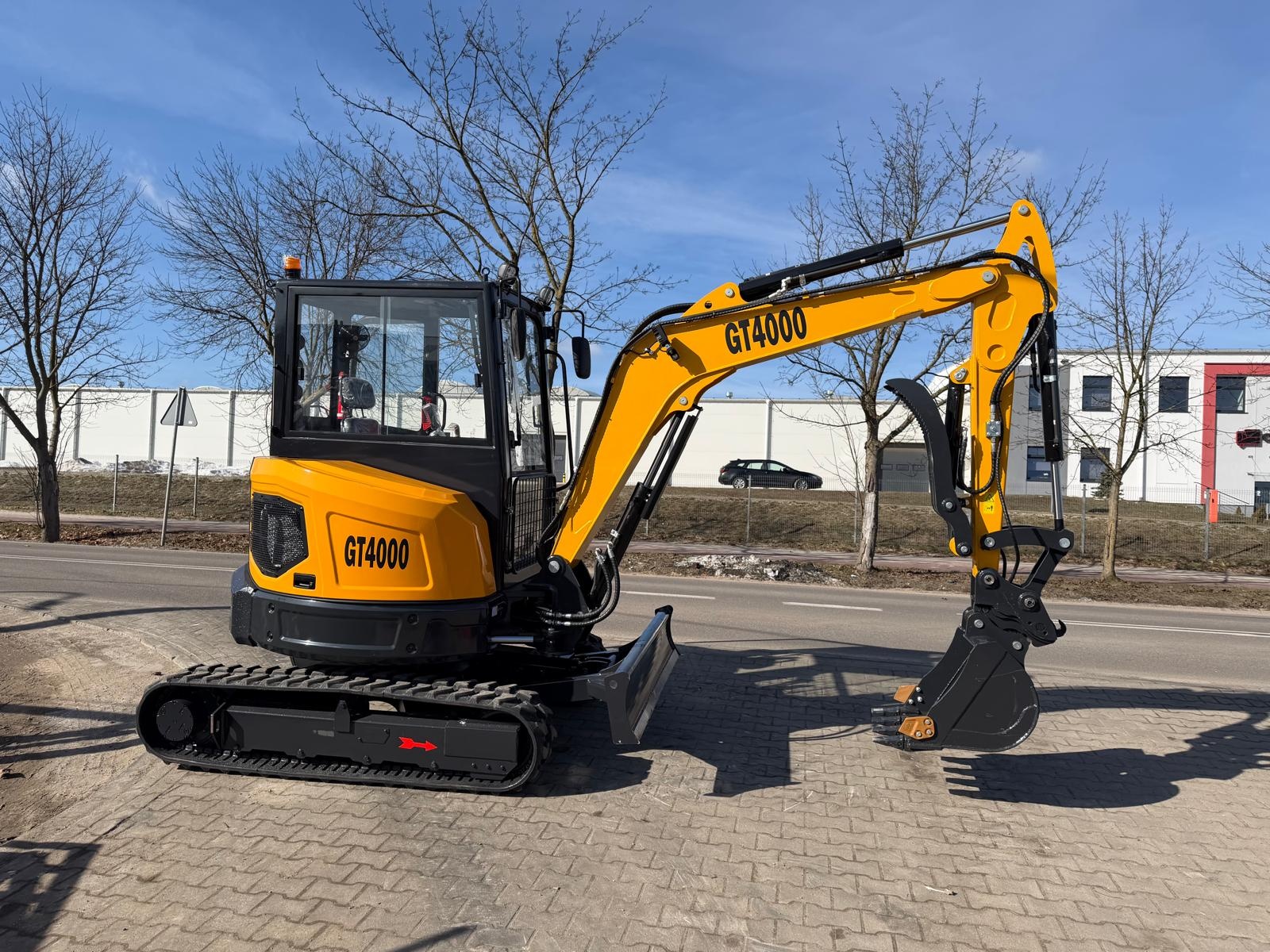

The GT4000 crawler excavator is a powerful and modern work machine weighing 4,000 kg, designed for intensive earthmoving, construction, and installation work. The robust construction, high power, and extensive equipment ensure that the machine performs excellently on both large construction sites and in demanding terrain.
Engine and drive

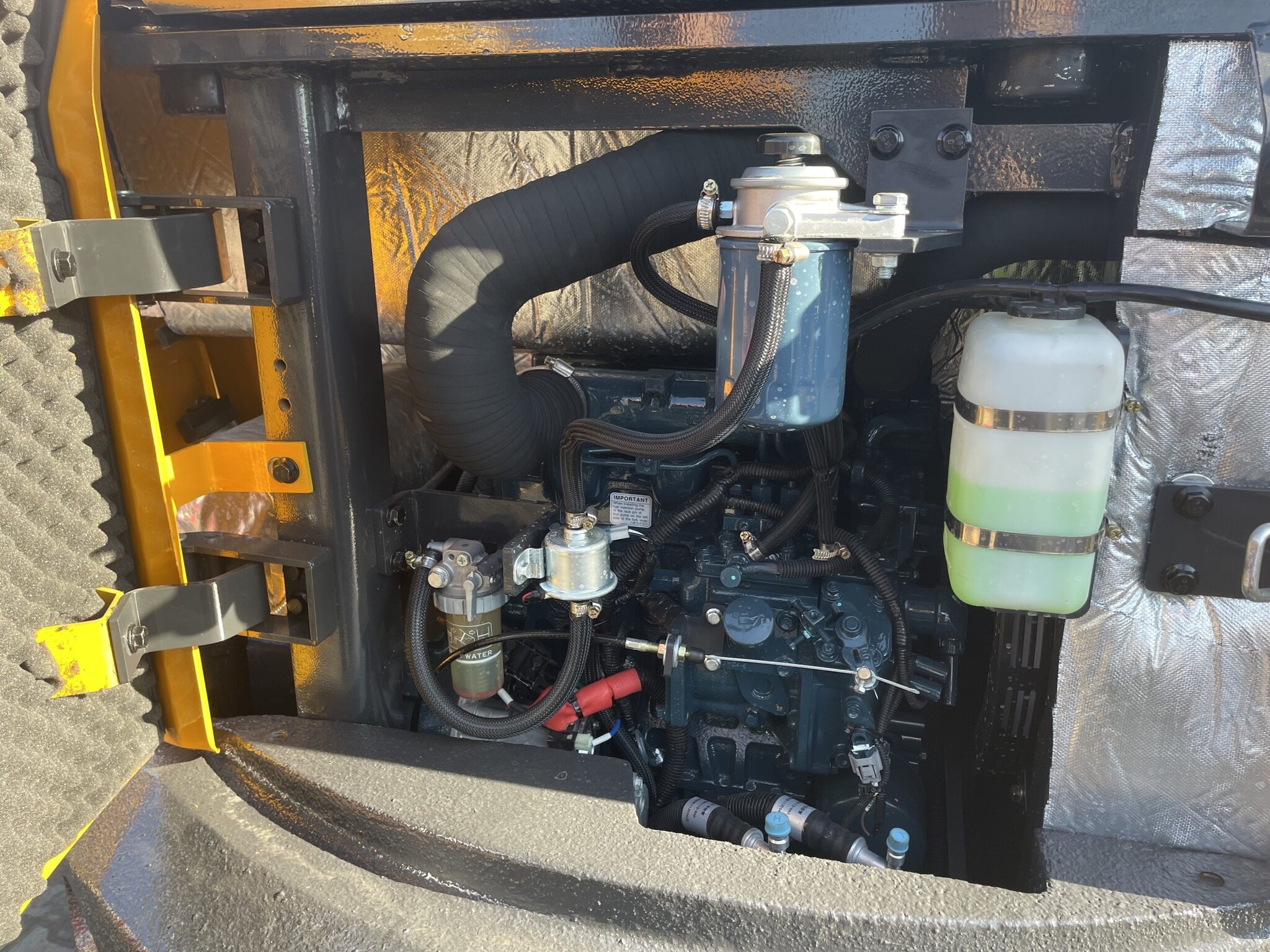

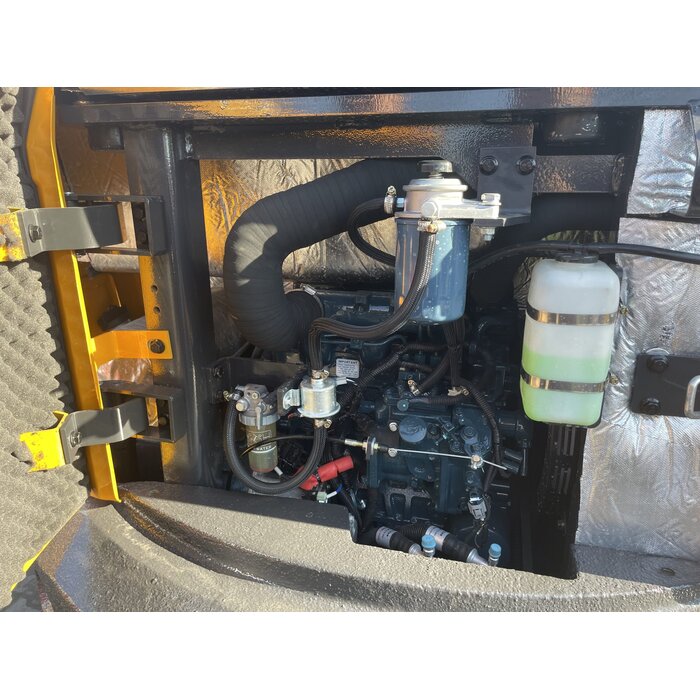

The machine is equipped with a reliable Kubota D1703 engine with a power output of 18.5 kW (25 hp) at 2200 rpm. The four-cylinder engine, liquid-cooled and equipped with a mechanical injection pump, ensures stable performance, a high torque of 97.4 Nm at 1500 rpm, and a long service life. The two-stage drive motor enables smooth movement at speeds of up to 4.4 km/h.
Hydraulic system
The hydraulic system operates at a pressure of 22.5 MPa and offers high performance and precise control. The maximum digging force of the bucket is 30.4 kN and that of the arm 18.2 kN, enabling efficient work even under heavy soil conditions. The standard bucket with a capacity of 0.12 m³ and a width of 50 cm ensures high work productivity.
Working range
The GT4000 offers a maximum digging depth of 3,208 mm and a vertical digging depth of 2,957 mm. The maximum digging height is 4,800 mm and the dumping height is 3,406 mm. The digging reach is 5,480 mm, allowing a wide range of earthmoving operations to be carried out efficiently.
Turning movement and maneuverability
The rotation speed of the upper carriage is 9 rpm, ensuring smooth work cycles. The minimum turning circle is 2,530 mm and the rear turning circle is only 860 mm, which significantly increases the machine's maneuverability in confined spaces.
Swivel arm and cabin

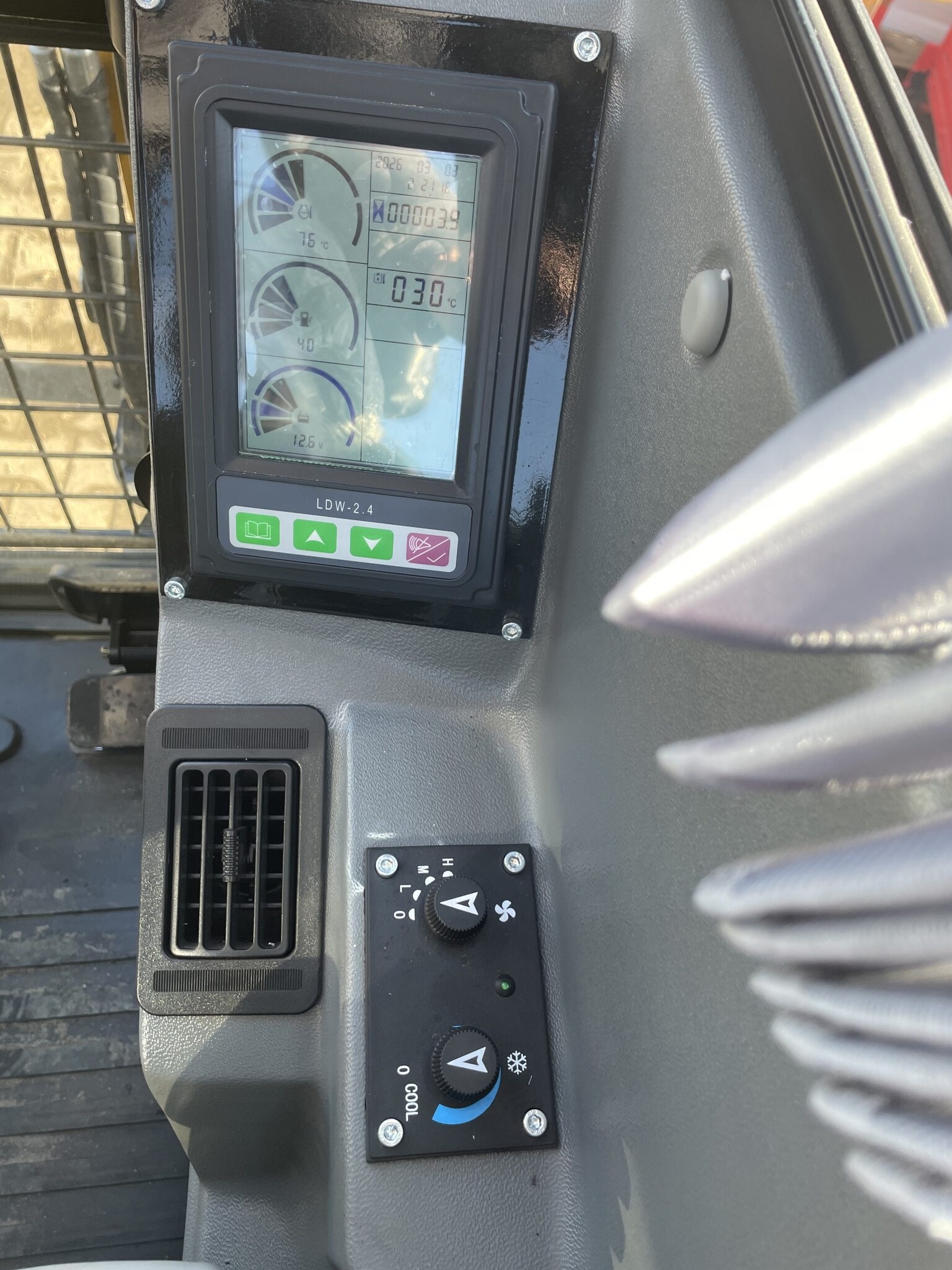

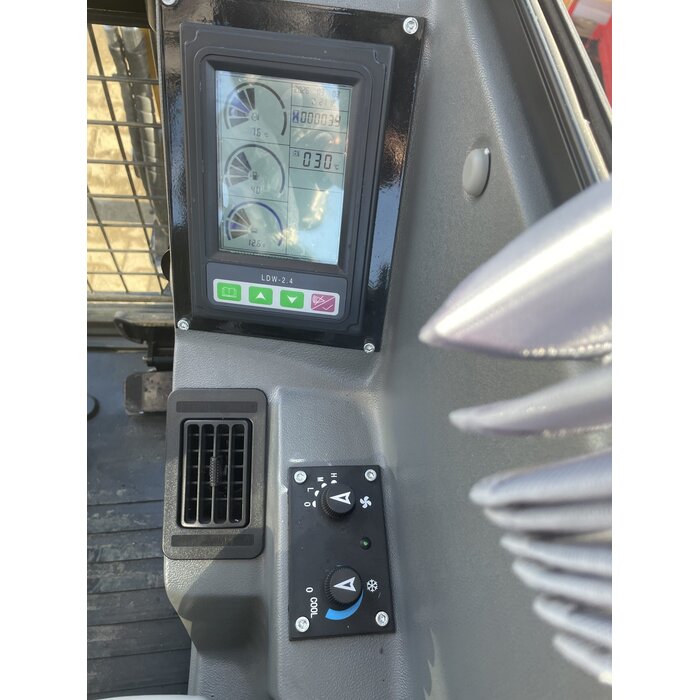

The swiveling arm allows for an angle of 55° to the left and 65° to the right, offering greater flexibility for trenching and work around obstacles. Operator comfort is enhanced by a spacious, air-conditioned cab and ergonomic joystick controls, ensuring comfortable and precise operation.
Technical specifications
Model GT4000
Machine weight 4000 kg
Kubota D1703 Engine
Power / speed 18.5 kW (25 hp) at 2200 rpm
Engine type In-line, liquid-cooled, 4-stroke, mechanical fuel pump, naturally aspirated
Maximum torque 97.4 Nm at 1500 rpm
Cylinder capacity 1.647 l
Fuel tank capacity 42 l
Hydraulic oil tank 48.5 l
Motor oil capacity 7 l
Drive motor Two speeds
Air conditioning available
Swivel arm present
Joystick Present
Maximum driving speed (low / high) 2.4 / 4.4 km/h
Standard bucket capacity 0.12 m³
Excavator bucket 50 cm
Swivel speed 9 rpm
Hydraulic system pressure 22.5 MPa
Maximum digging force arm 18.2 kN
Maximum bucket digging force 30.4 kN
Ground pressure 32 kPa
Maximum incline capacity 58%
Maximum digging height 4800 mm
Maximum pouring height 3406 mm
Maximum digging depth 3208 mm
Maximum vertical digging depth 2957 mm
Maximum digging radius 5480 mm
Maximum digging radius (at ground level) 5359 mm
Minimum turning circle 2530 mm
Maximum height at minimum turning circle 3655 mm
Maximum lifting height of the blade 365 mm
Maximum penetration depth of the blade 385 mm
Boom deflection angle (left / right) 55° / 65°
Length 4915 mm
Width 1720 mm
Height 2525 mm
Blade height 350 mm
Track width 1420 mm
Wheelbase (track contact length with the ground) 1670 mm
Minimum ground clearance 295 mm
Length of rubber track 2154 mm
Rear turning radius 860 mm
Turning radius for 2538 mm
